Shift Lock Control Schematics (Hatchback - North American)

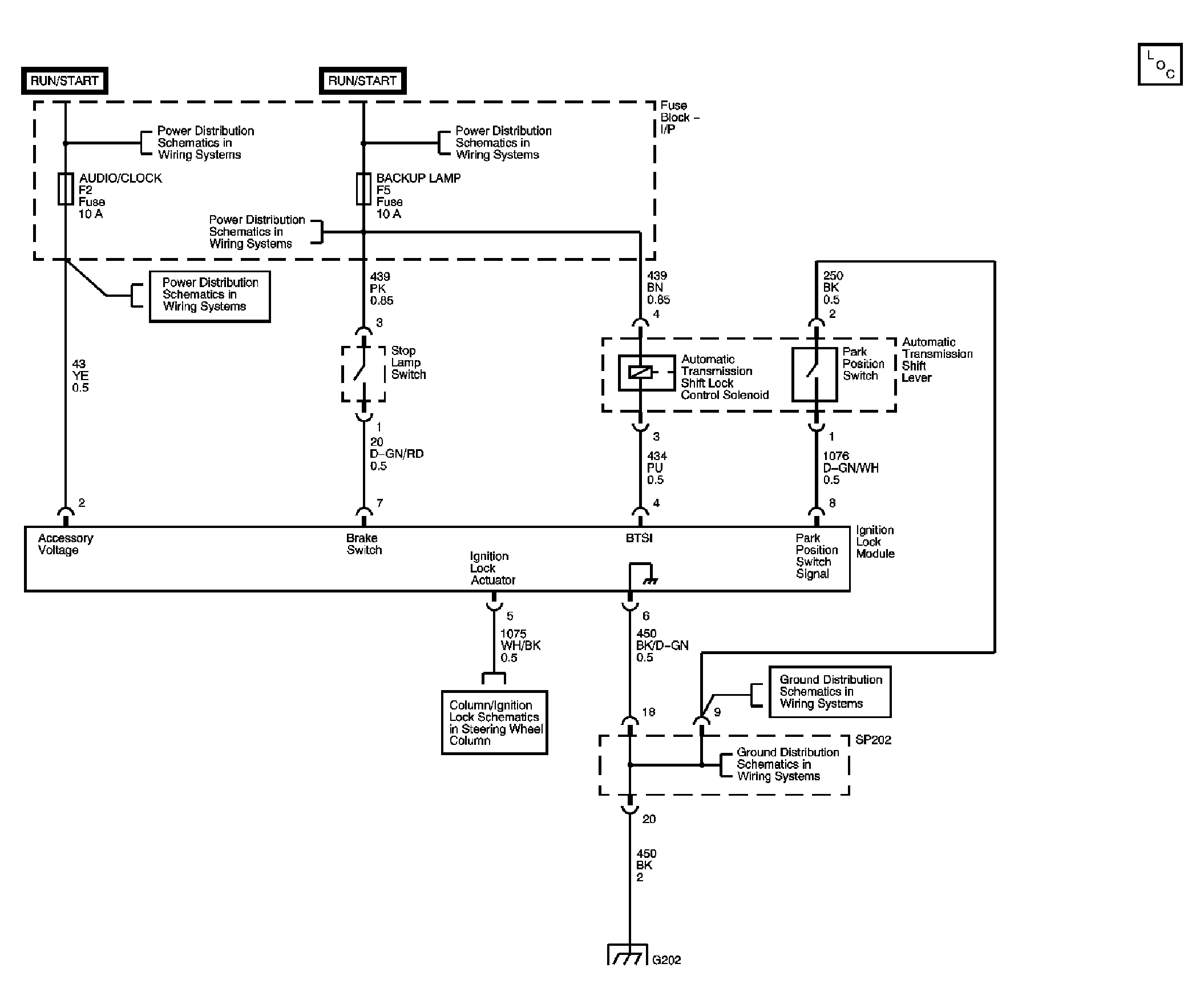

Fig 1: Shift Lock Control Schematics (Hatchback - North American)

GM1680285

Courtesy of GENERAL MOTORS CORP.
