Antilock Brake System Schematics (Notchback)

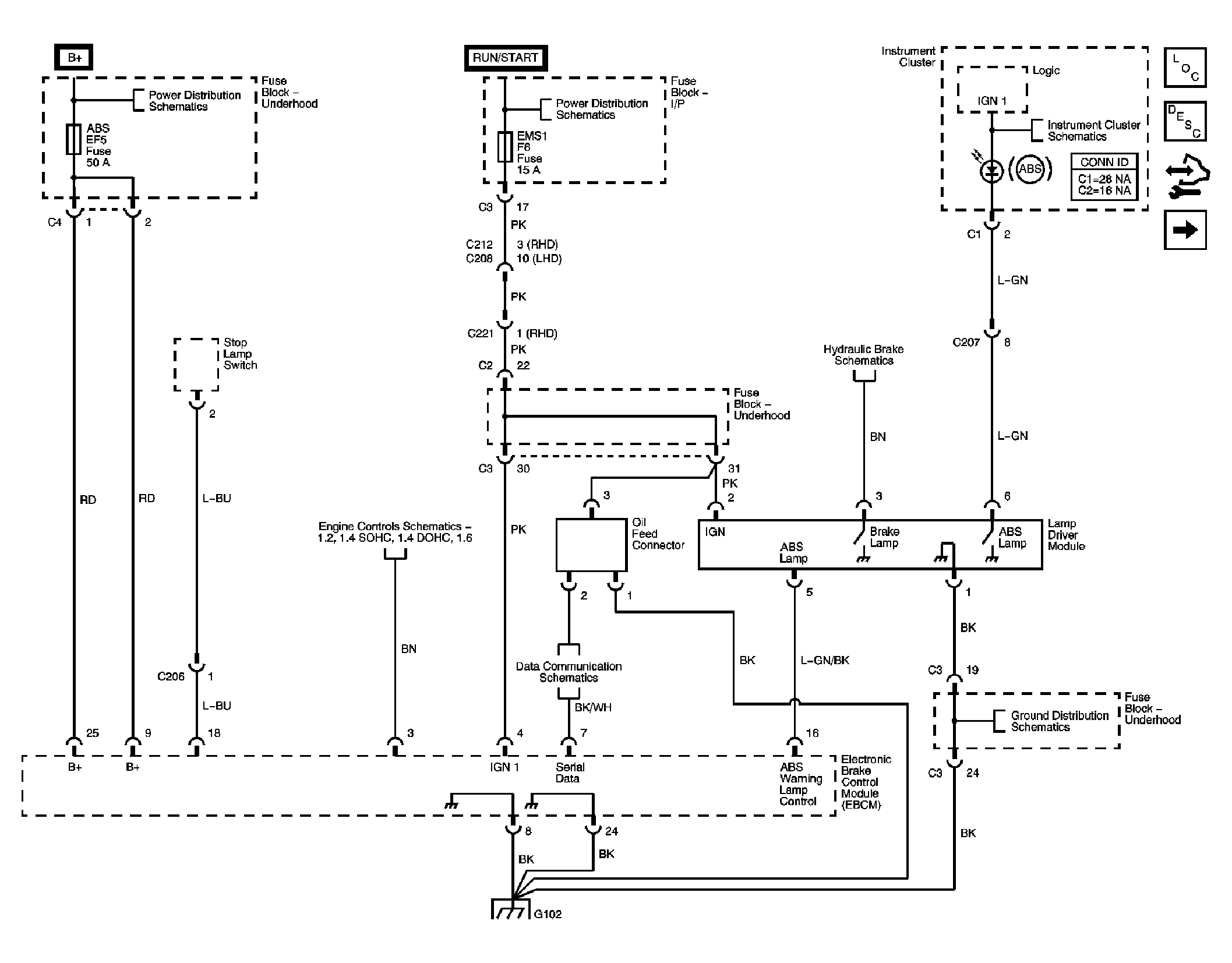

Fig 1: Electronic Brake Control Module (EBCM) Power and Ground Distribution, Serial Data, Lamp Driver Module and Stop Lamp Switch
GM1736643Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Speed Sensors
GM1736644Courtesy of GENERAL MOTORS CORP.
