Accelerator Pedal Module (APM) Removal

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF.
  2. Disconnect the Electronic Throttle Control (ECT) connector from the APM.
    Fig 1: Identifying Electronic Throttle Control (ECT) Connector
    G04718855Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the bolts, three places, attaching the APM to the APM support bracket.

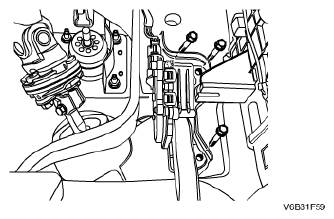

    Fig 2: Removing/Installing APM Support Bracket Bolts
    G04718856Courtesy of SUZUKI OF AMERICA CORP.
