ECM Wiring Diagram (For HATCHBACK Model) - 4/7

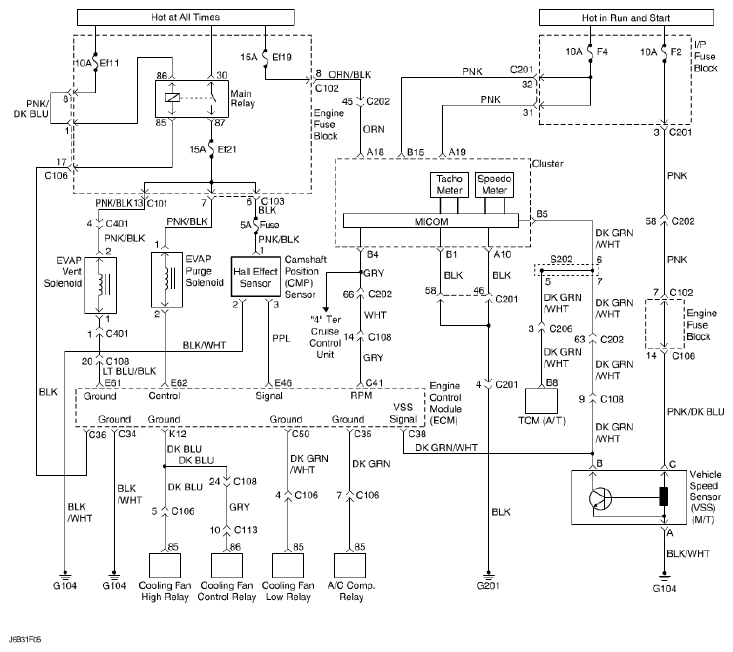

Fig 1: ECM Wiring Diagram (For HATCHBACK Model) - 4/7

G04817233

Courtesy of SUZUKI OF AMERICA CORP.
