Defogger System Circuit Wiring Diagram (For STATION WAGON Model)

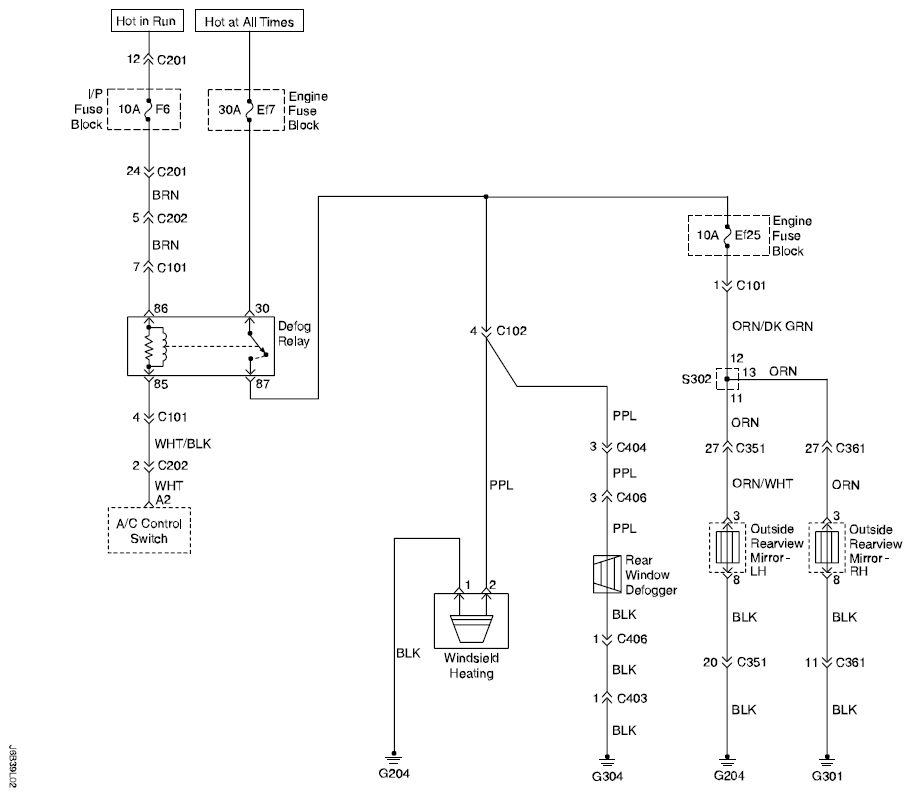

Fig 1: Defogger System Circuit Wiring Diagram - Station Wagon Model

G04718196

Courtesy of SUZUKI OF AMERICA CORP.
