Engine and Emission Control System Diagram

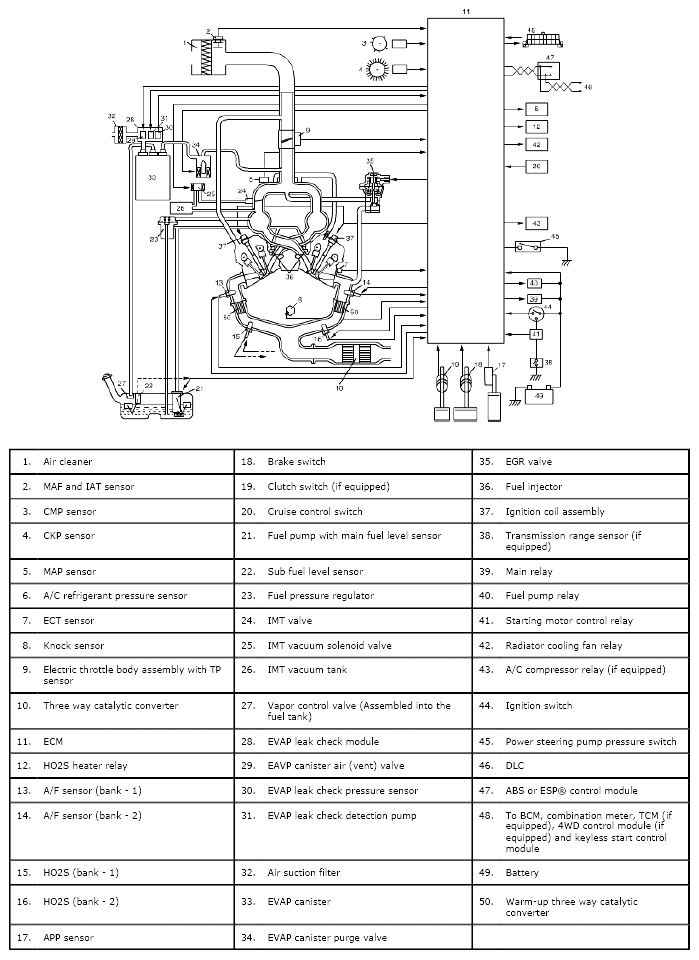

Fig 1: Identifying Engine & Emission Control System Routing Diagram

G04824610

Courtesy of SUZUKI OF AMERICA CORP.
