DTC U0073: Control Module Communication BUS Off: Wiring Diagram

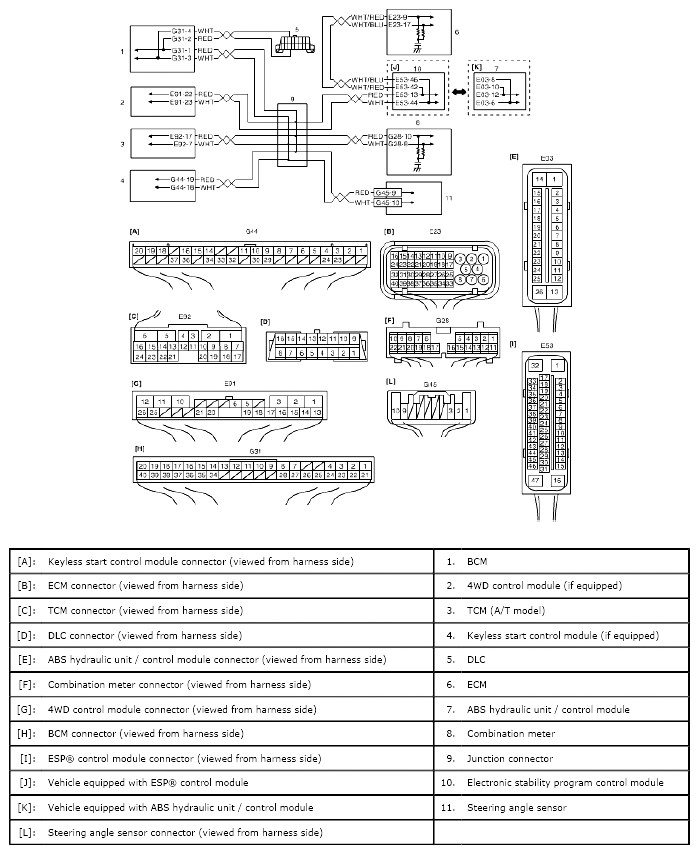

Fig 1: Identifying Control Module Communication BUS Off Wiring Diagram

G04824675

Courtesy of SUZUKI OF AMERICA CORP.
