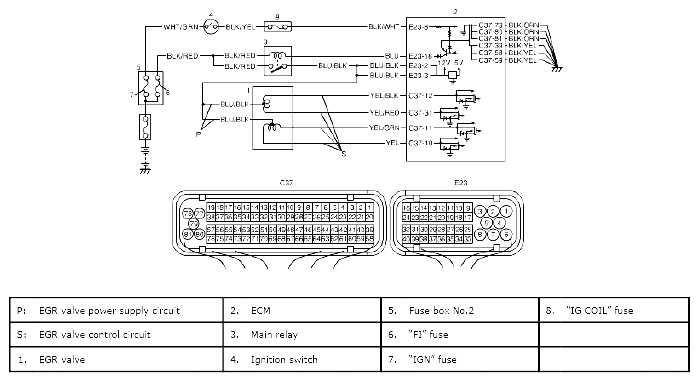

Home >> Suzuki >> 2007 >> Grand Vitara Base, AWD, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> Diagnostic Information And Procedures >> DTC P0401/P0402: Exhaust Gas Recirculation Flow Insufficient Detected/Excessive Detected >> System/Wiring Diagram
