ESP® Control Module Connector End View (E53)

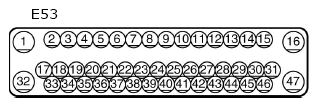

Fig 1: ESP® Control Module Connector End View (E53)

G11134647

Courtesy of SUZUKI OF AMERICA CORP.
