Forward and Direct Clutch Components

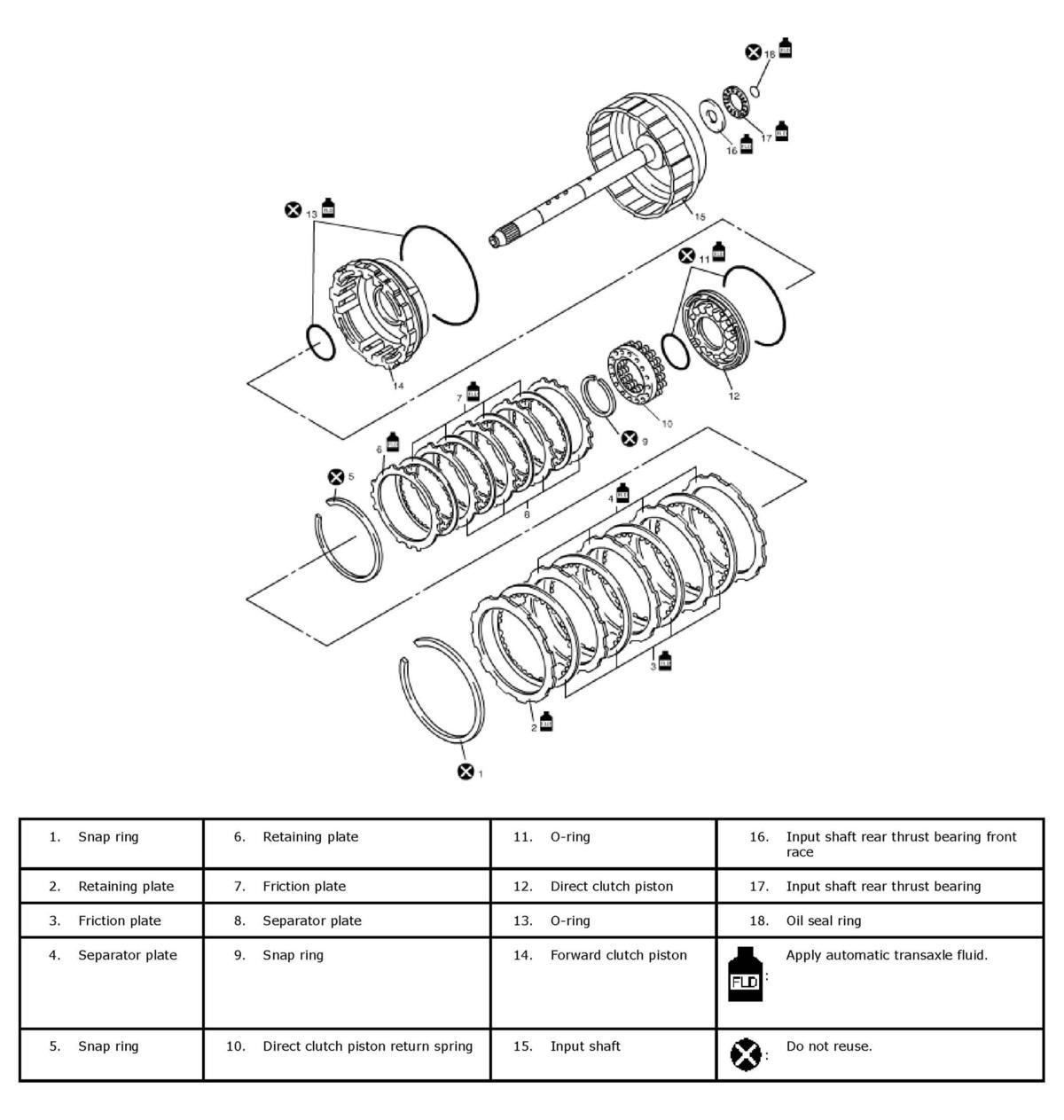

Fig 1: Identifying Forward And Direct Clutch Components

G04591993

Courtesy of SUZUKI OF AMERICA CORP.
