Ignition System Wiring Circuit Diagram

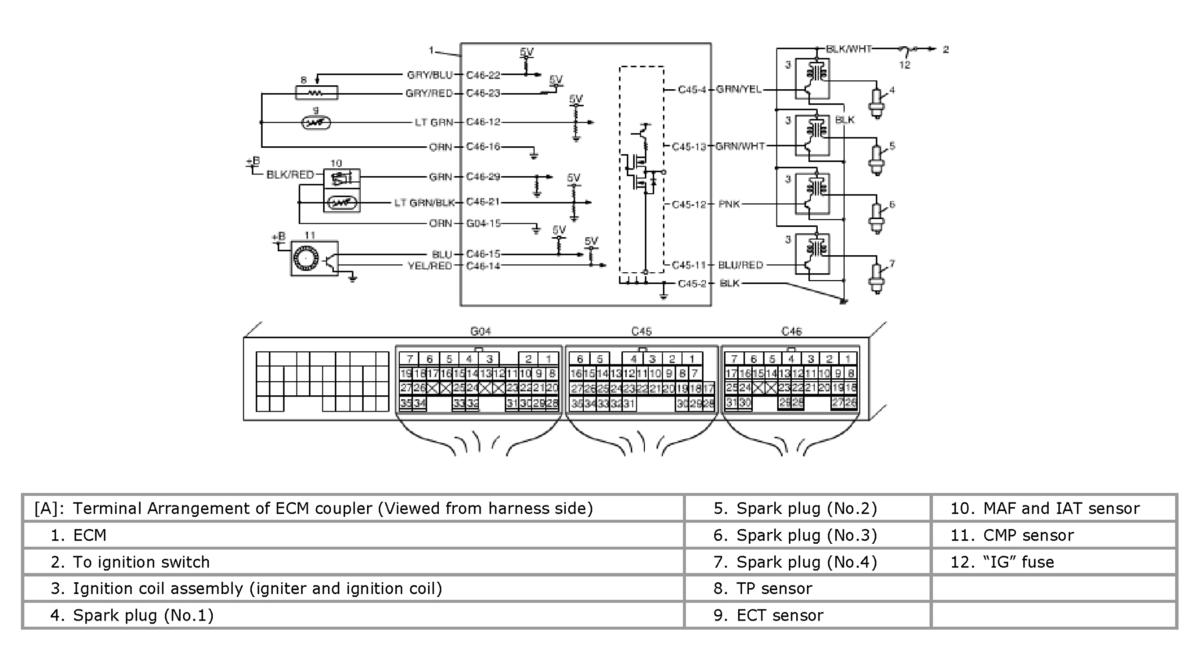

Fig 1: Ignition System Wiring Circuit Diagram

G04590026

Courtesy of SUZUKI OF AMERICA CORP.
