Oil Pump Disassembly and Assembly: Disassembly

Disassemble oil pump.

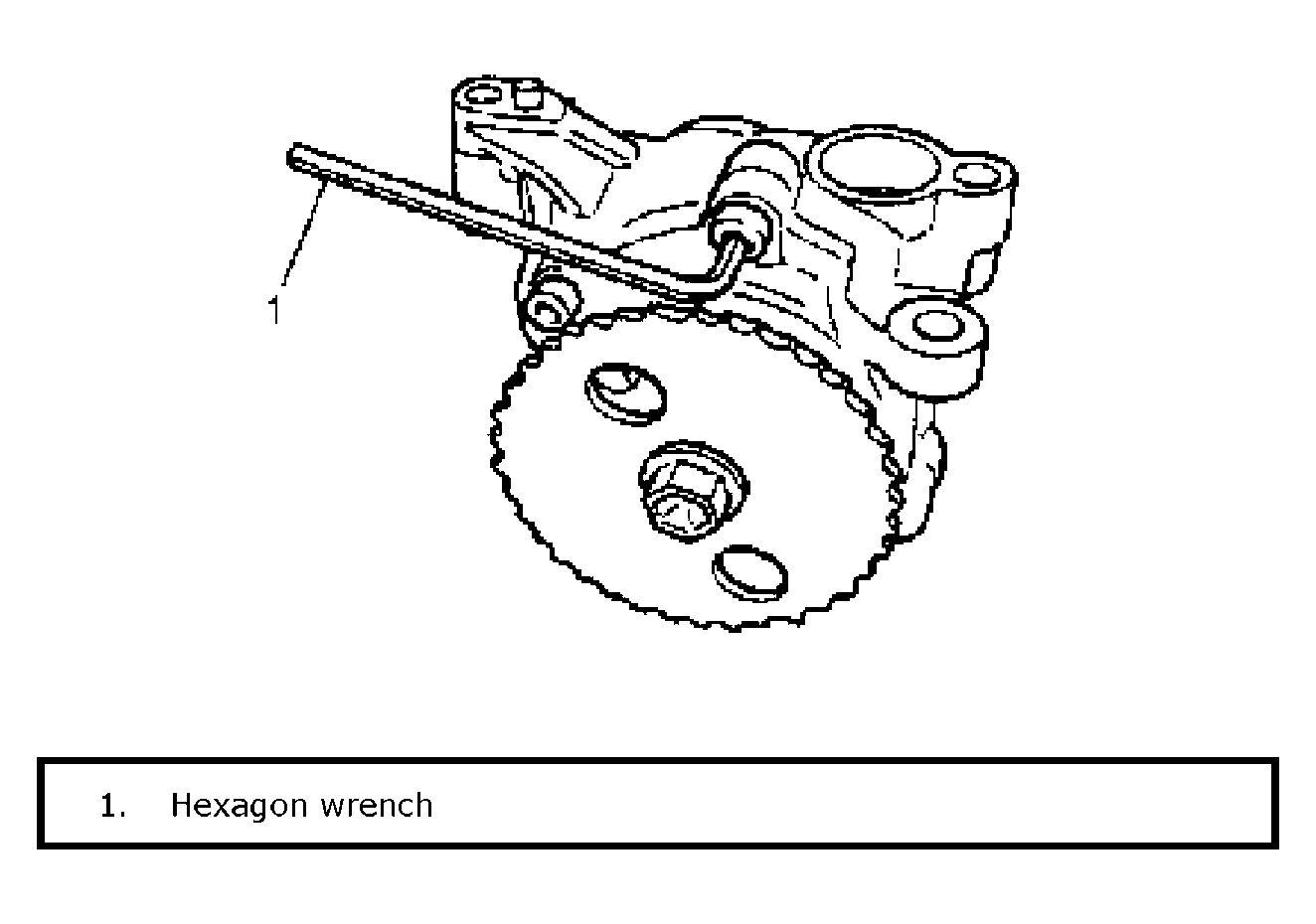

Fig 1: Disassembling Oil Pump
Courtesy of SUZUKI OF AMERICA CORP.
