Self-Diagnosis Function

ABS control module diagnoses conditions of the system component parts (whether or not there is any abnormality) all the time and indicates the results (warning of abnormality occurrence and DTC) through the ABS warning lamp as described.

• When ignition switch is turned ON, ABS warning lamp lights for 2 seconds to check its warning lamp and circuit.
• When no abnormality has been detected (the system is in good condition), ABS warning lamp turns OFF after 2 seconds.
• When an abnormality in the system is detected, ABS warning lamp lights and the area where that abnormality lies is stored in the memory of EEPROM in ABS control module.
  Fig 1: Identifying ABS Warning Lamp

  Courtesy of SUZUKI OF AMERICA CORP.
• When Diag. switch "PNK" wire terminal (2) of blue diagnosis connector (1) (monitor connector) is grounded, the abnormal area is output as DTC. It is indicated by flashing of ABS warning lamp. (Refer to the following table.)
  SYSTEM CONDITION CHART



  System Condition		ABS Warning Lamp Operation	DTC Indicated by ABS Warning Lamp	DTC displayed on SUZUKI Scan Tool
  In good condition at present	No trouble in the past	OFF	DTC 12	NO DTC
  	Trouble occurred in the past	OFF	History DTC	History DTC
  Abnormality exists at present	No trouble in the past	ON	Current DTC	Current DTC
  	Trouble occurred in the past	ON	Current and history DTC indicated simultaneously	Current and history DTC indicated individually

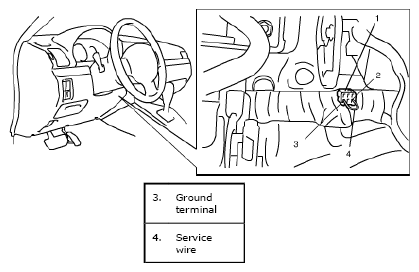

  Fig 2: Identifying Wire Terminal, Connector, Ground Terminal & Service Wire

  Courtesy of SUZUKI OF AMERICA CORP.
• For procedure to clear all DTC's, refer to DTC CLEARANCE .

  Also ABS control module turns ON EBD warning lamp (brake warning lamp) depending on the trouble that detected by the module and EBD warning lamp does not indicate DTC as well as ABS warning lamp.
