DTC P0496: Evaporative (EVAP) Emission System Flow During Non-Purge: Notes

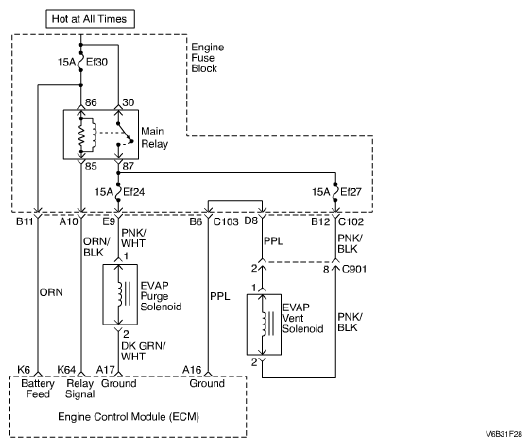

Fig 1: Evaporative (EVAP) Emission System Flow During Non-Purge - Wiring Diagram

G04718727

Courtesy of SUZUKI OF AMERICA CORP.
