Power Windows Diagram
Power Windows Diagram

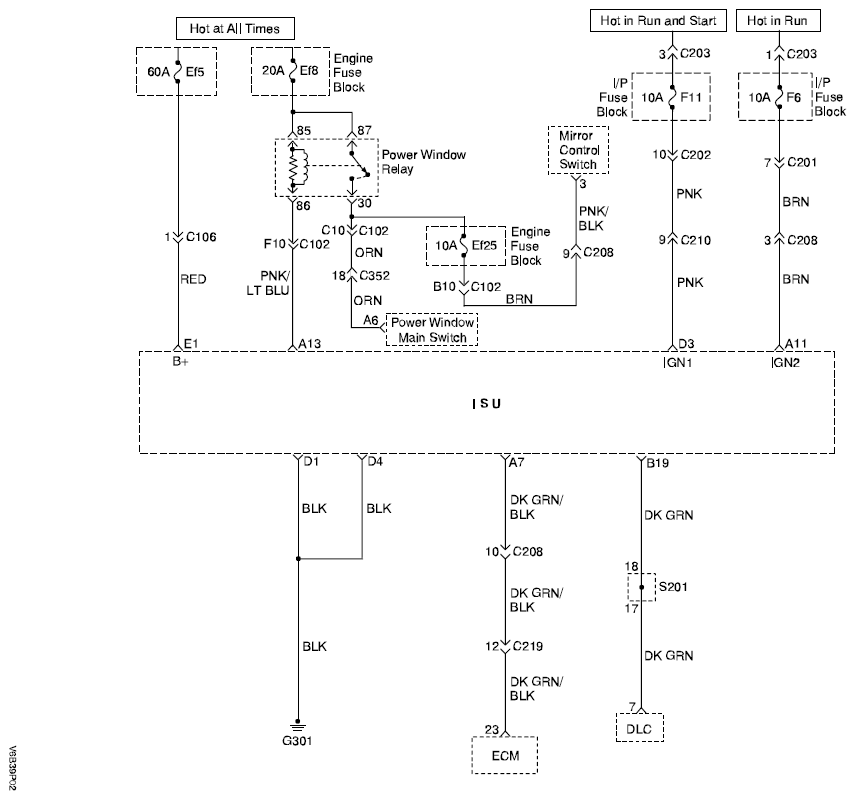

Fig 1: Power Windows Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

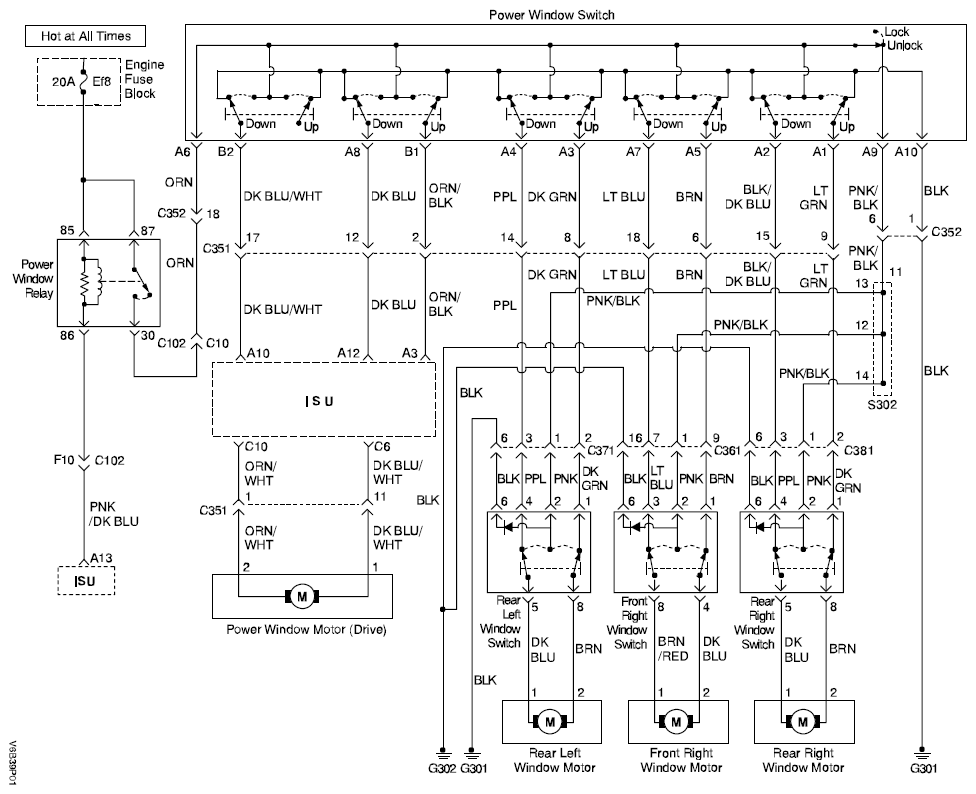

Fig 2: Power Windows Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
