Defogger System Circuit Wiring Diagram (For NOTCHBACK and HATCHBACK Model)

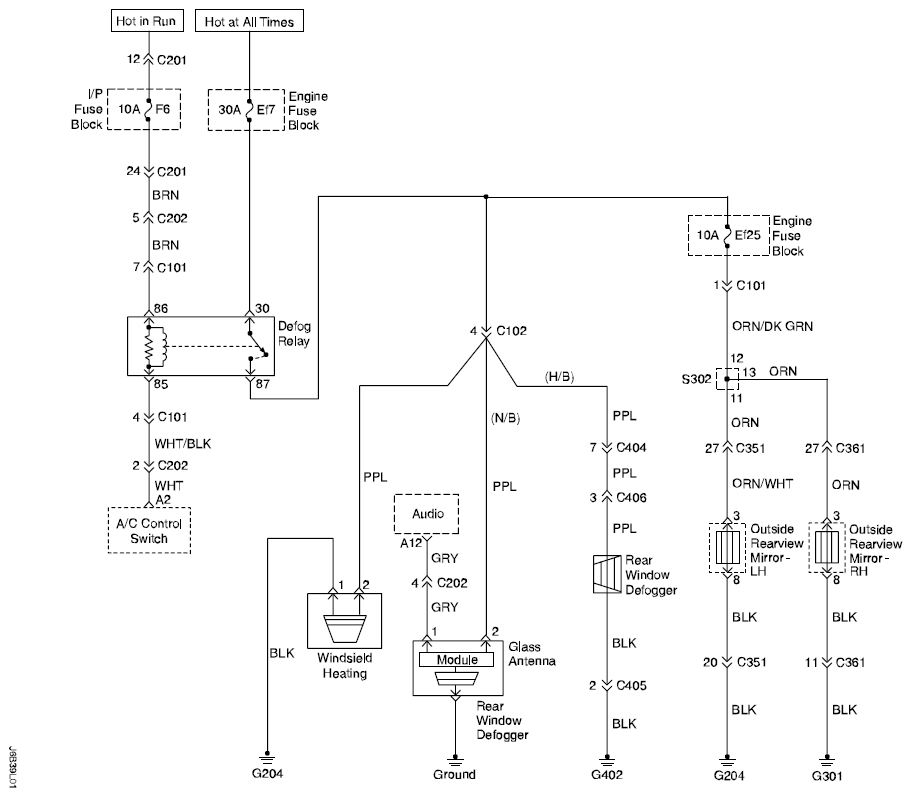

Fig 1: Defogger System Circuit Wiring Diagram - Notchback And Hatchback Model

G04718195

Courtesy of SUZUKI OF AMERICA CORP.
