Engine And Emission Control System Diagram

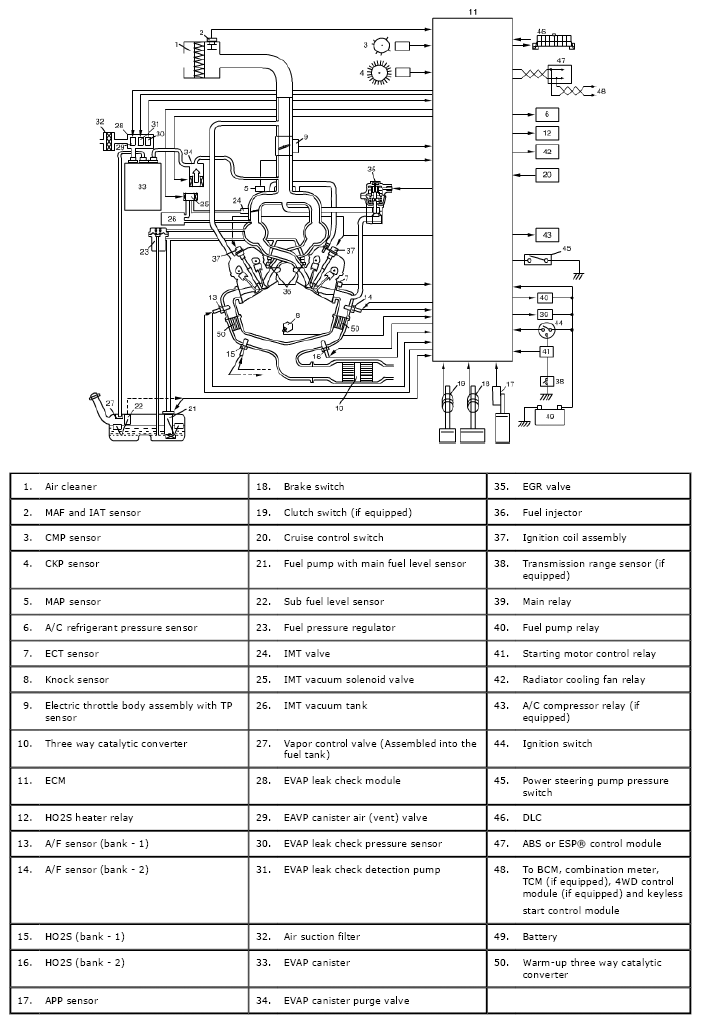

Fig 1: Engine & Emission Control System Diagram

G04807062

Courtesy of SUZUKI OF AMERICA CORP.
