DTC U0073: Control Module Communication Bus Off: Wiring Diagram

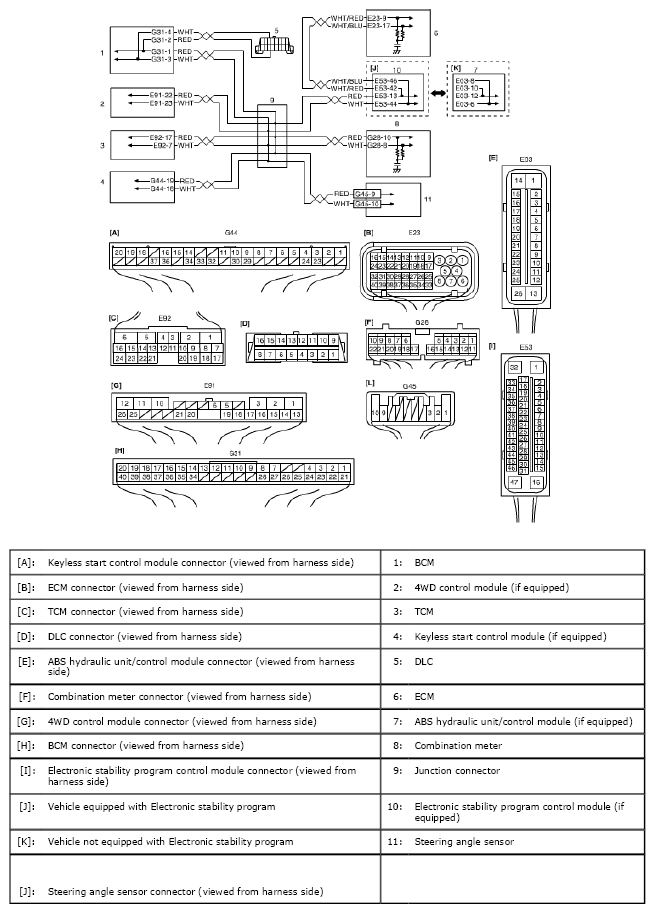

Fig 1: Wiring Diagram - DTC U0073 Control Module Communication Bus Off

G04808562

Courtesy of SUZUKI OF AMERICA CORP.
