Manifold Absolute Pressure (MAP) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the MAP sensor.

    Tighten

    Tighten the manifold absolute pressure (MAP) sensor to 6 ~ 10 N.m (53 ~ 89 lb-in).

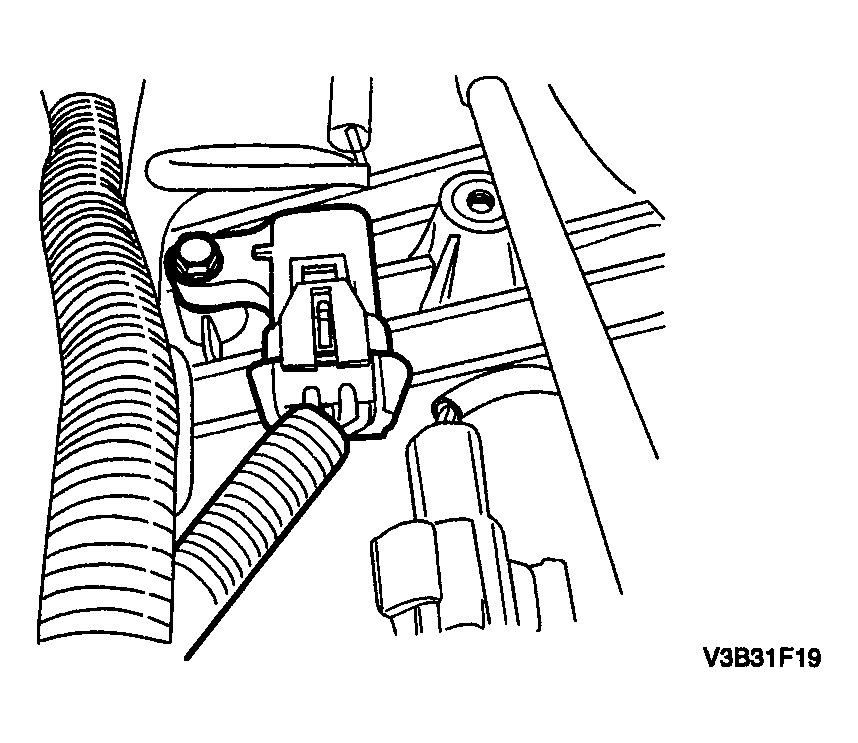

    Fig 1: Installing MAP Sensor
    G04094577Courtesy of SUZUKI OF AMERICA CORP.
