DTC P1668 Engine Coolant Temperature Output Circuit: Notes

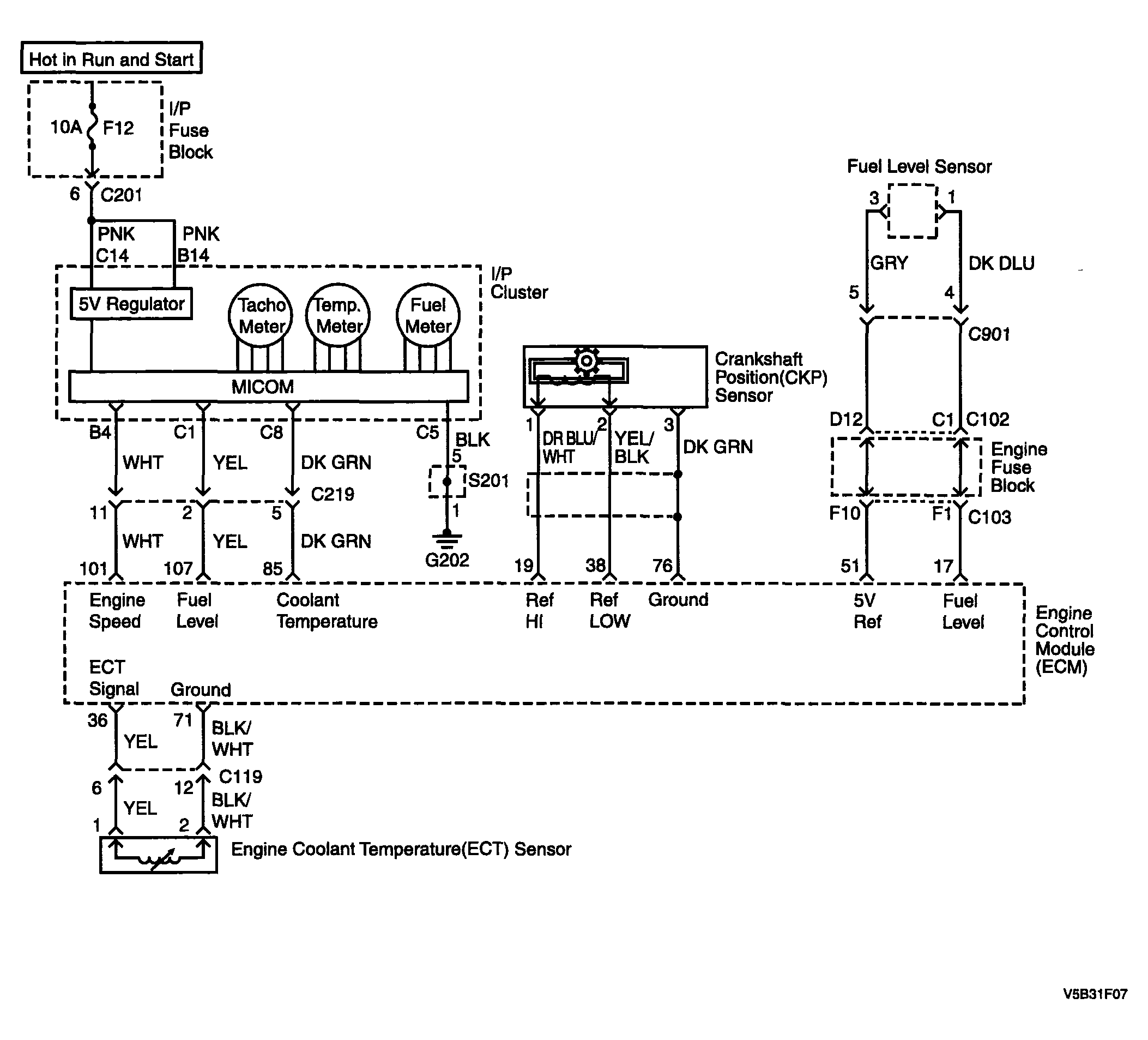

Fig 1: P1668 Engine Coolant Temperature Output Circuit - Circuit Diagram

G04094525

Courtesy of SUZUKI OF AMERICA CORP.
