DTC P0445 EVAP Purge Control Valve Circuit Shorted: Notes

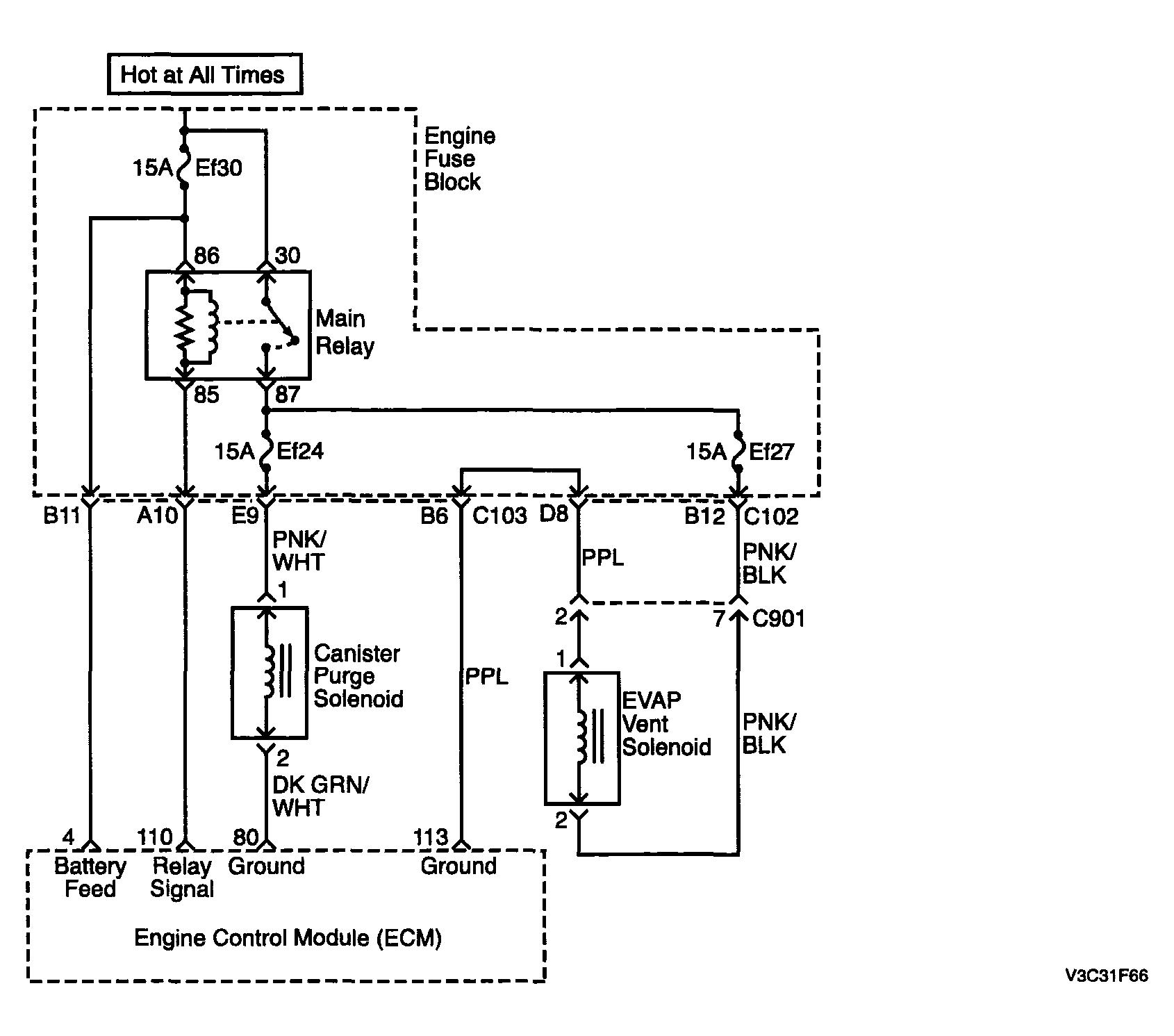

Fig 1: P0445 EVAP Purge Control Valve Circuit Shorted - Circuit Diagram

G04094491

Courtesy of SUZUKI OF AMERICA CORP.
