DTC P0444 EVAP Purge Control Valve Circuit Open: Notes

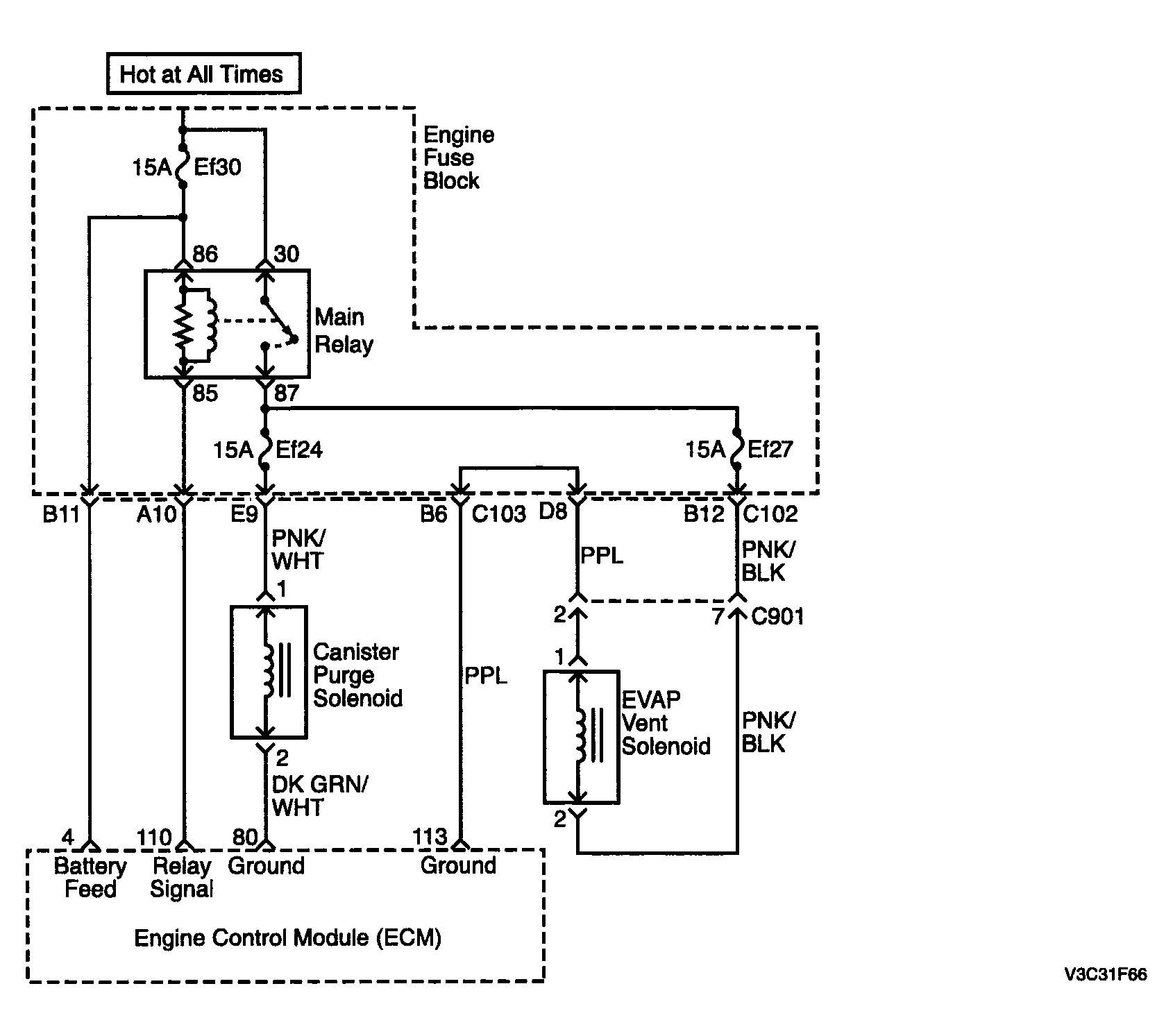

Fig 1: P0444 EVAP Purge Control Valve Circuit Open - Circuit Diagram

G04094490

Courtesy of SUZUKI OF AMERICA CORP.
