DTC P0101 Mass Air Flow (MAF) Sensor Rationality Check: Notes

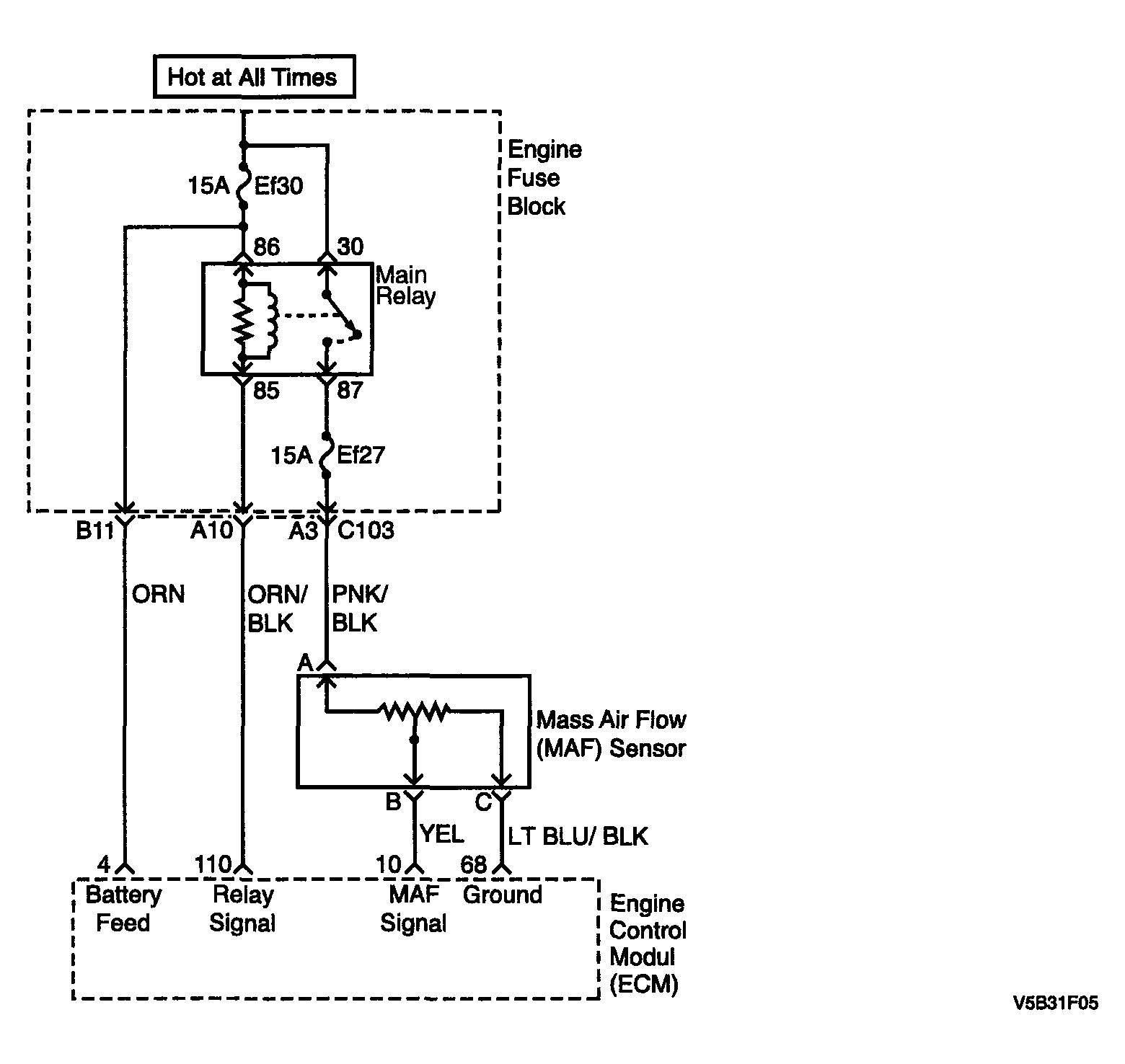

Fig 1: P0101 Mass Air Flow (MAF) Sensor Rationality Check - Circuit Diagram

G04094422

Courtesy of SUZUKI OF AMERICA CORP.
