DTC P0201 Injector 1 Circuit Fault: Notes

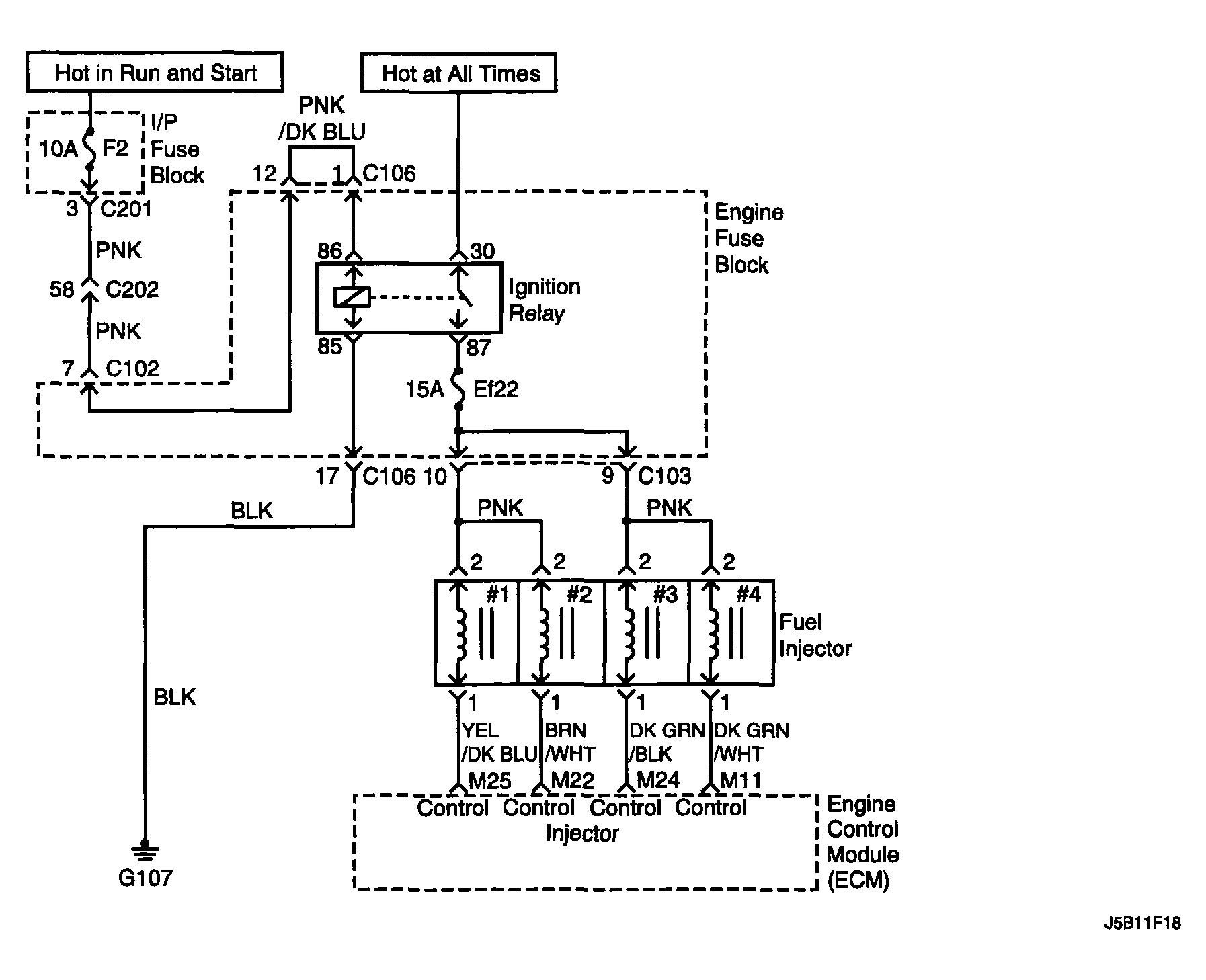

Fig 1: Injector 1 Circuit Fault - Circuit Diagram
G04102539Courtesy of SUZUKI OF AMERICA CORP.
