DTC P0102: Mass Air Flow Sensor Circuit Low Input: Wiring Diagram

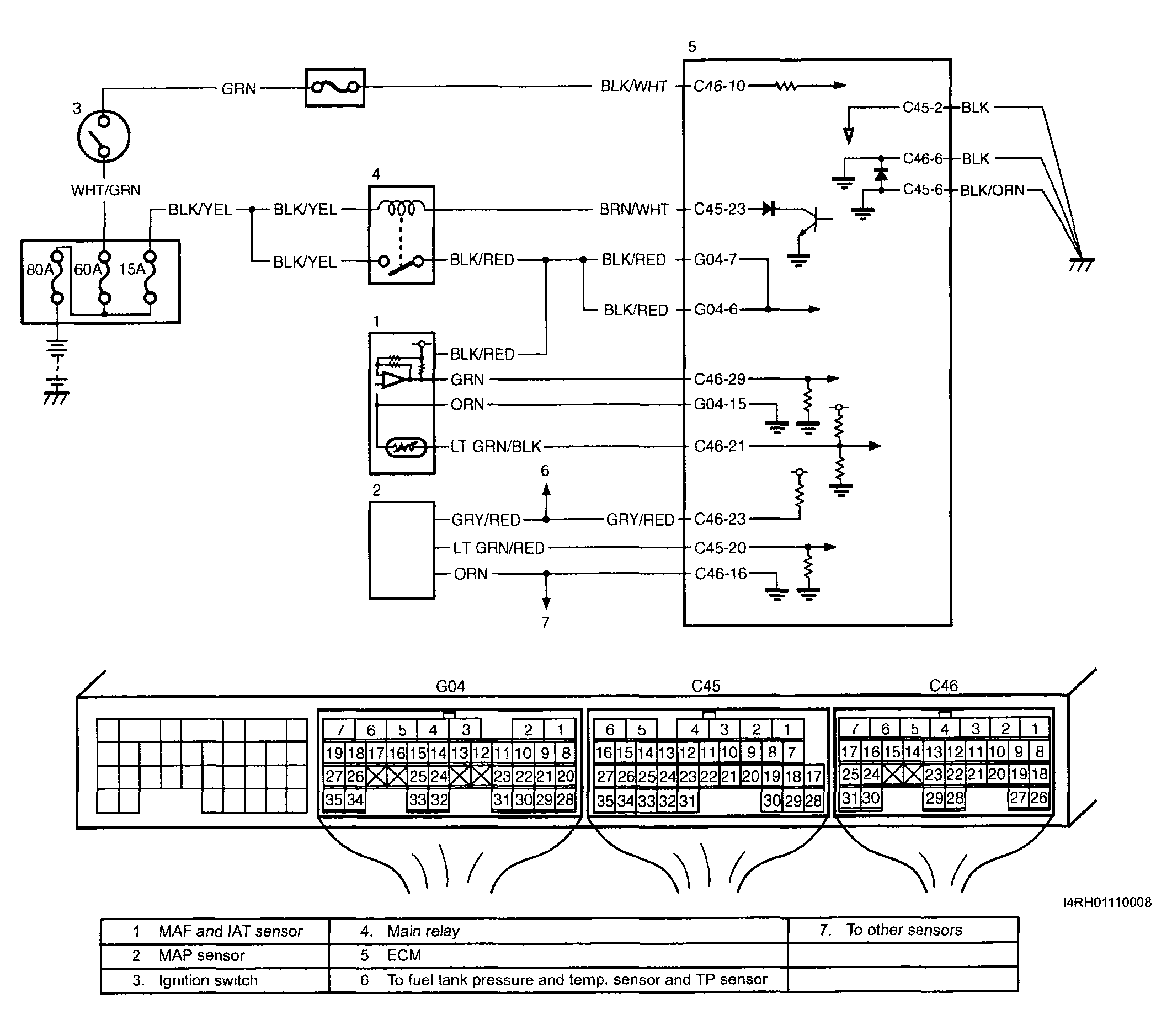

Fig 1: Mass Air Flow Sensor Circuit Low Input - Wiring Diagram (DTC P0102)

G04013684

Courtesy of SUZUKI OF AMERICA CORP.
