Manual Transaxle Unit Components

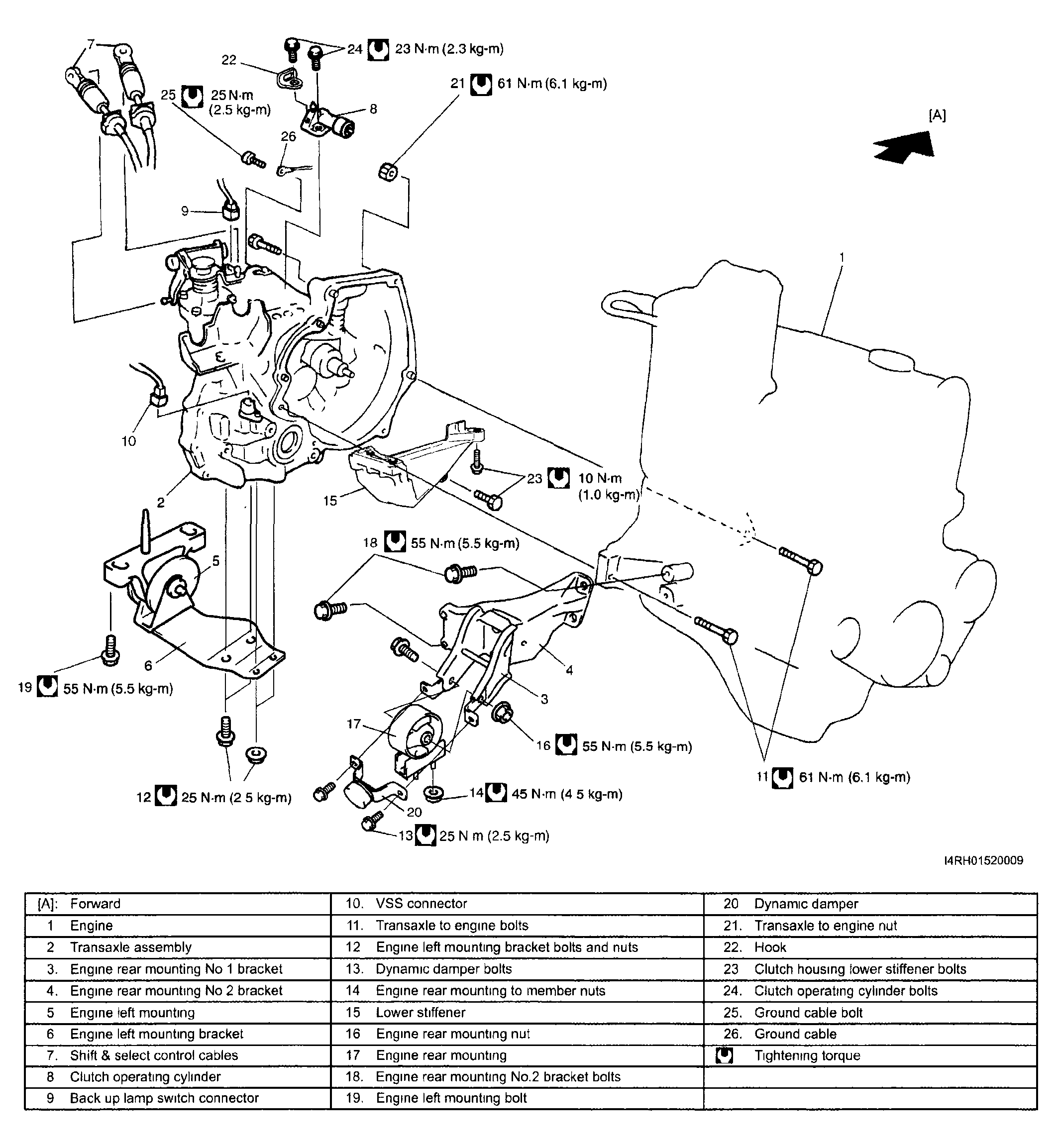

Fig 1: Manual Transaxle Components

G04015288

Courtesy of SUZUKI OF AMERICA CORP.
