DTC P0327, P0328: Knock Sensor Circuit Low Input/High Input: Wiring Diagram

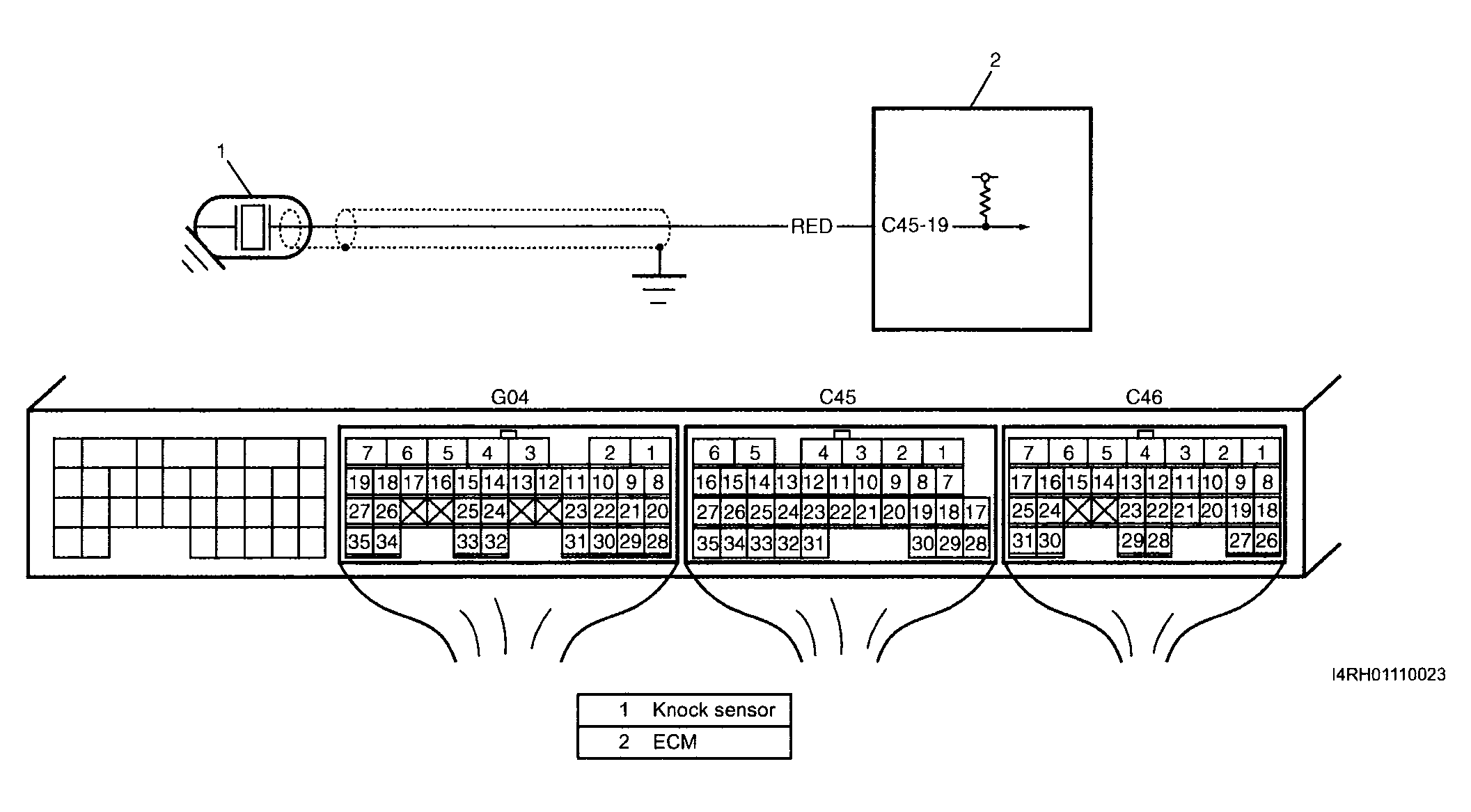

Fig 1: Knock Sensor Circuit Low Input/High Input - Wiring Diagram (DTC P0327/P0328)

G04013719

Courtesy of SUZUKI OF AMERICA CORP.
