DTC P0141: 02 Sensor Heater Circuit (Sensor-2): Wiring Diagram

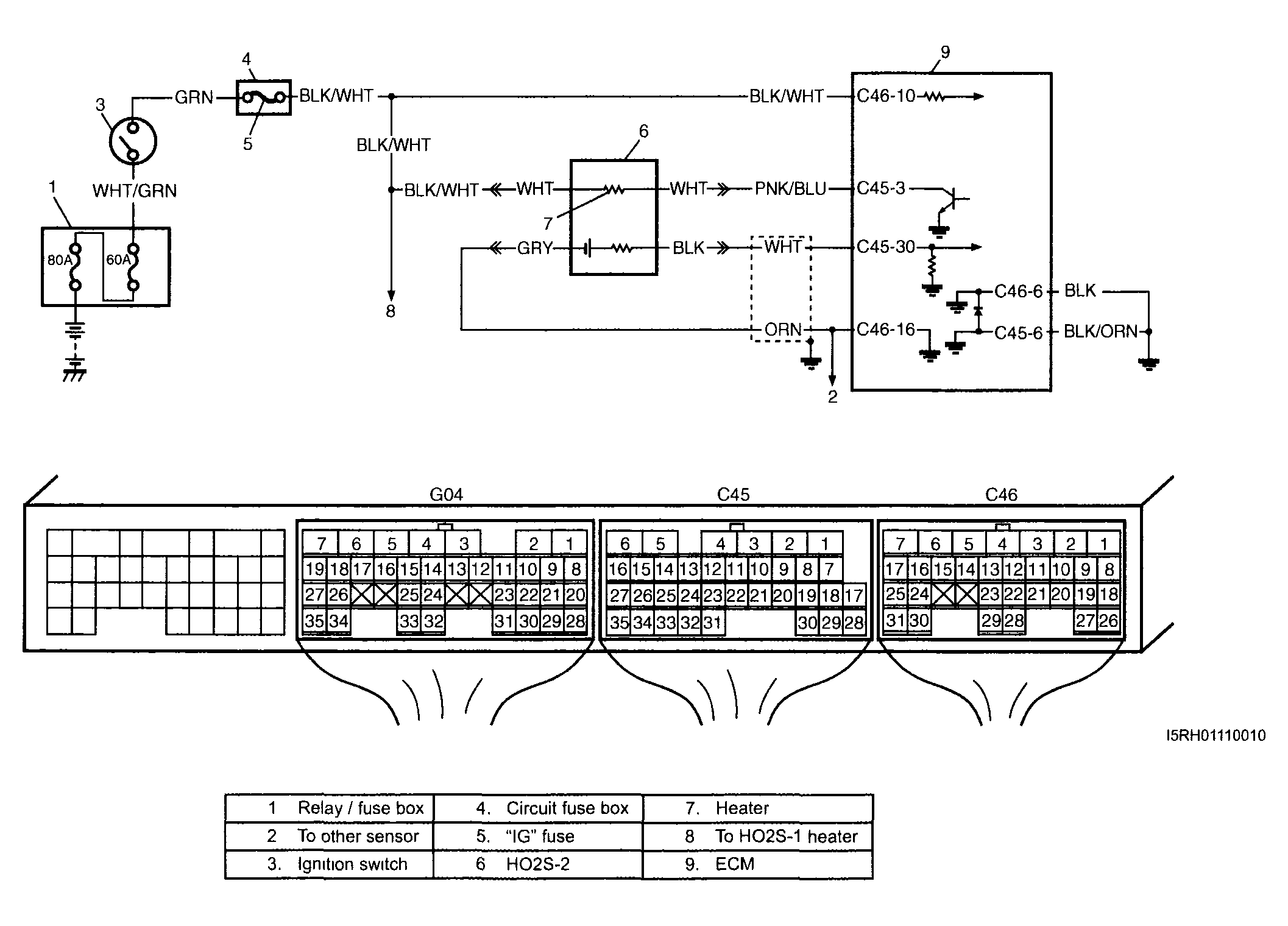

Fig 1: Heater Sensor Circuit - Wiring Diagram (DTC P0141)

G04013718

Courtesy of SUZUKI OF AMERICA CORP.
