DTC P0121: Throttle Position Sensor Circuit Range/Performance: Wiring Diagram

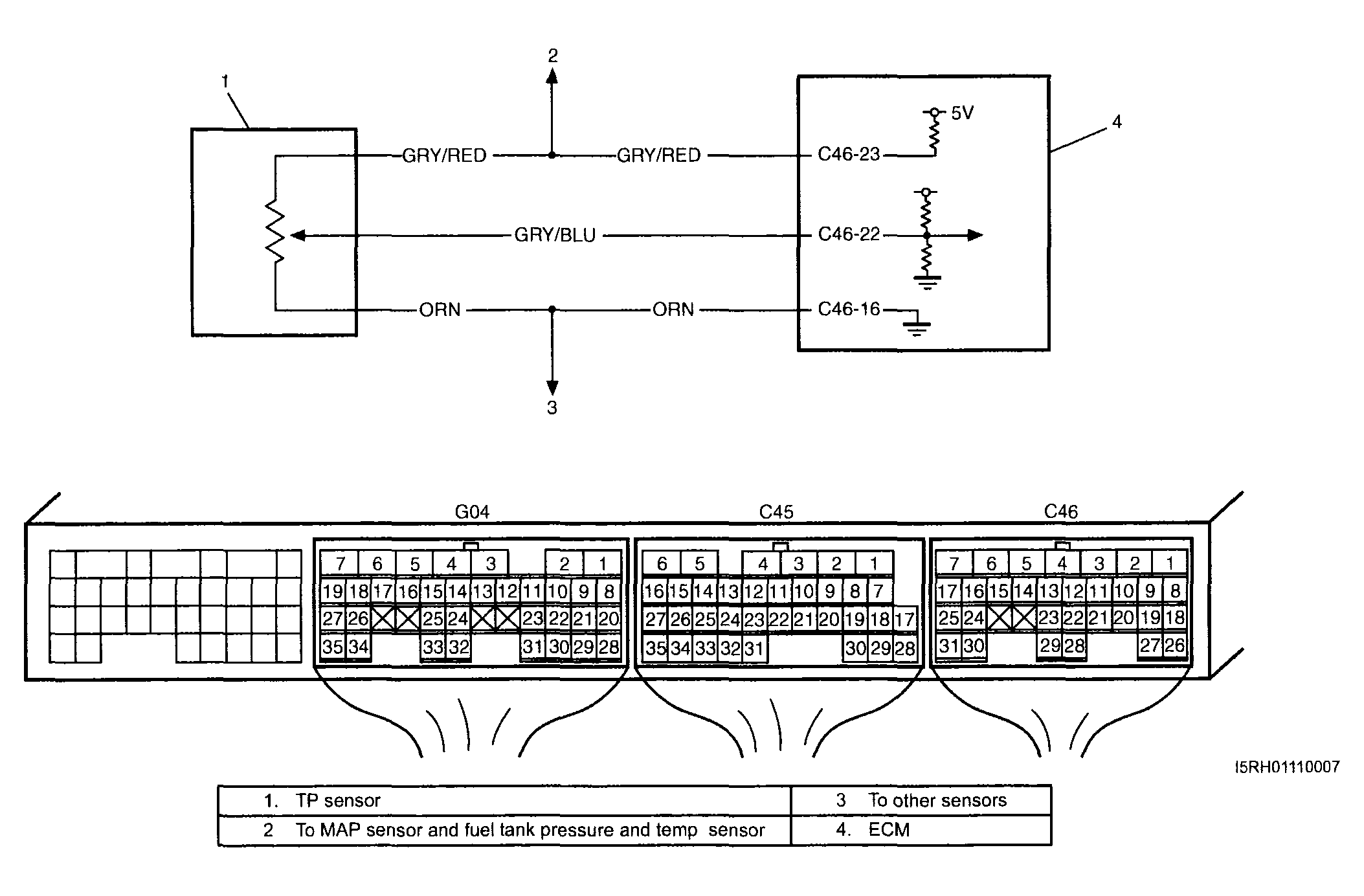

Fig 1: Throttle Position Sensor Circuit - Wiring Diagram (DTC P0121)

G04013700

Courtesy of SUZUKI OF AMERICA CORP.
