DTC P0101: Mass Air Flow Circuit Range/Performance Problem
>>
Wiring Diagram
DTC P0101: Mass Air Flow Circuit Range/Performance Problem: Wiring Diagram

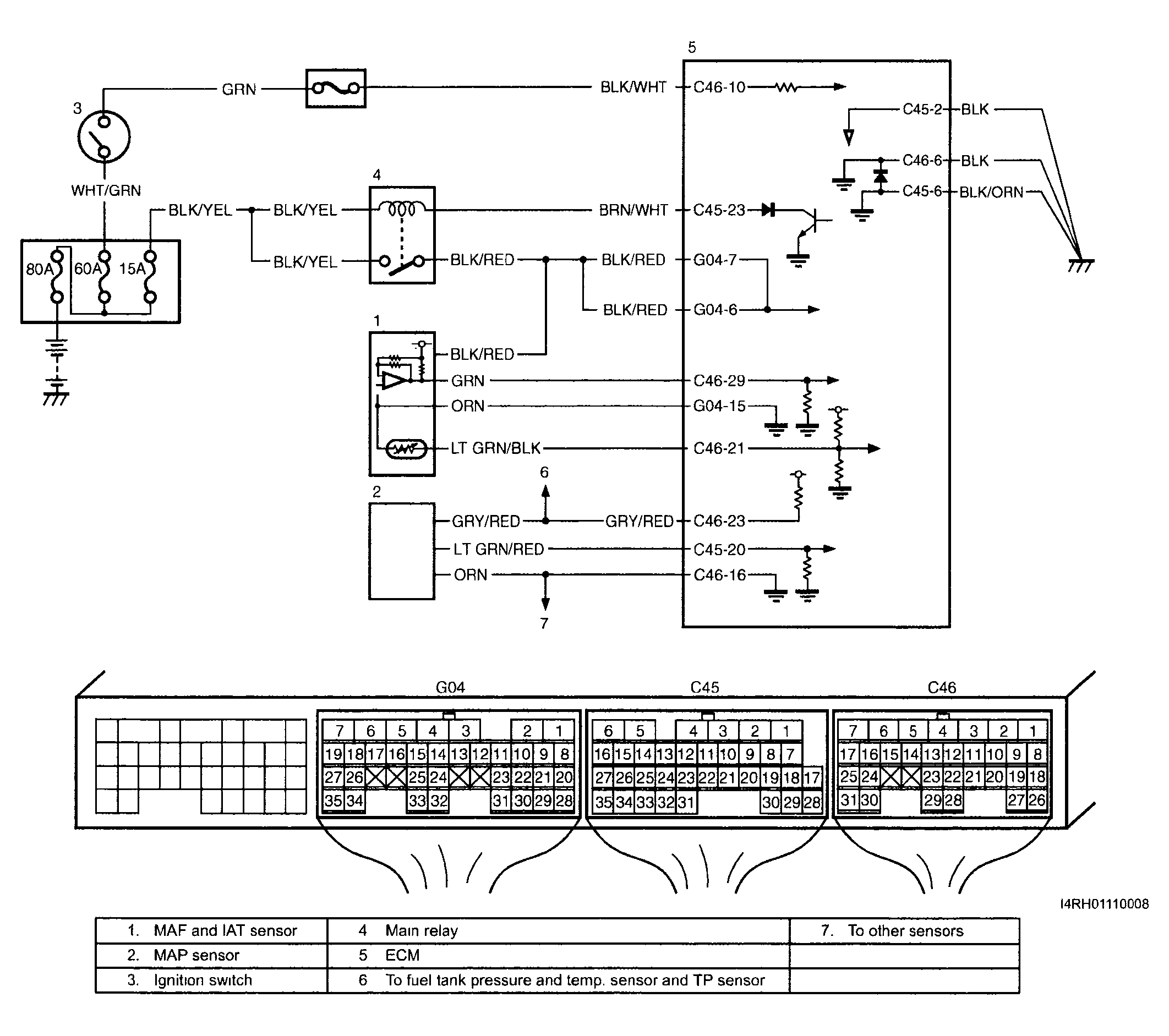

Fig 1: Mass Air Flow - Wiring Diagram (DTC P0101)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
