Home >> Suzuki >> 2005 >> Aerio LX, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> Idle Air Control (IAC) System Check >> System / Wiring Diagram

System / Wiring Diagram

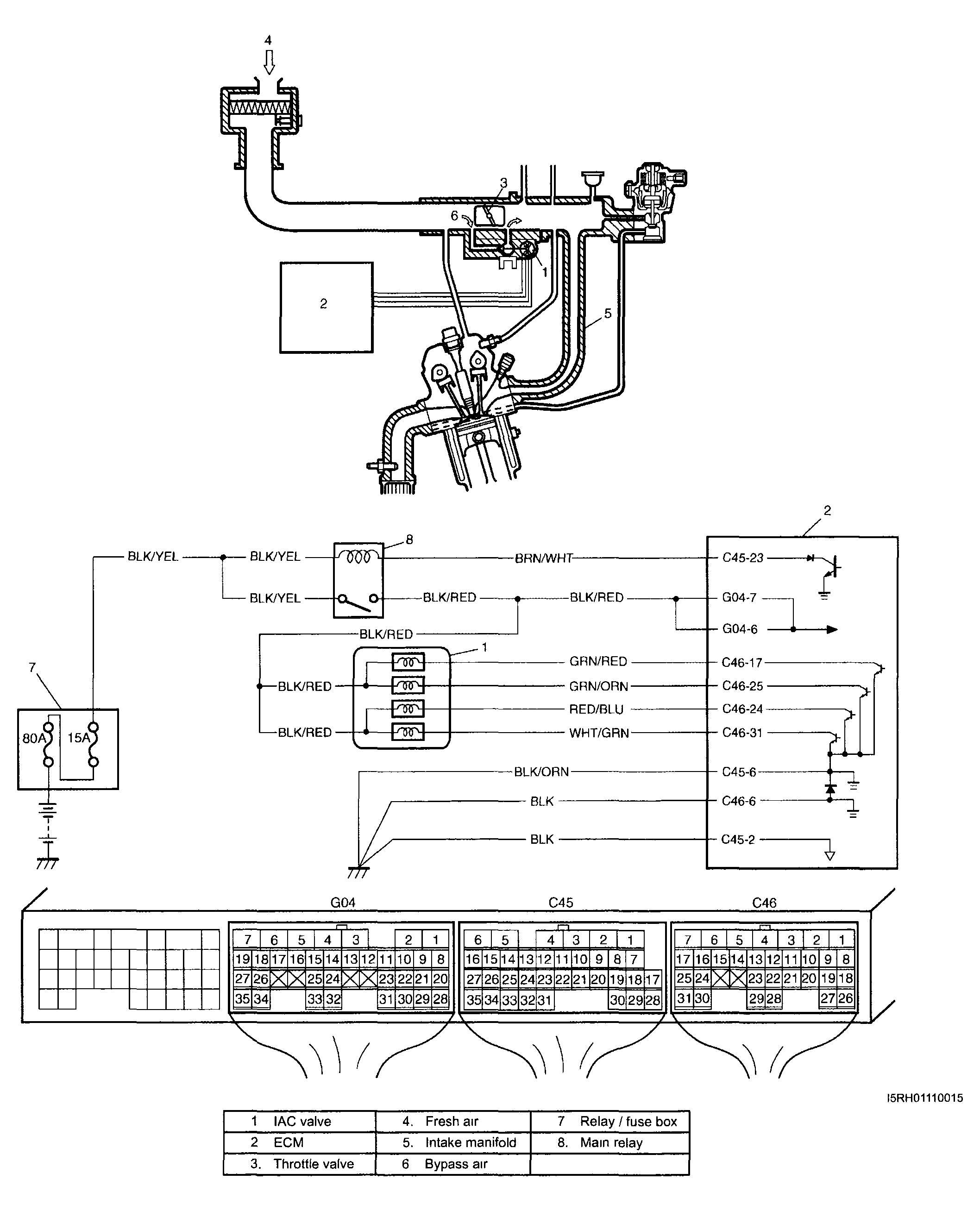

Fig 1: Idle Air Control - Wiring Diagram

G04013813

Courtesy of SUZUKI OF AMERICA CORP.
