Home >> Suzuki >> 2005 >> Aerio LX, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> Electric Load Signal Circuit Check >> Wiring Diagram

Electric Load Signal Circuit Check: Wiring Diagram

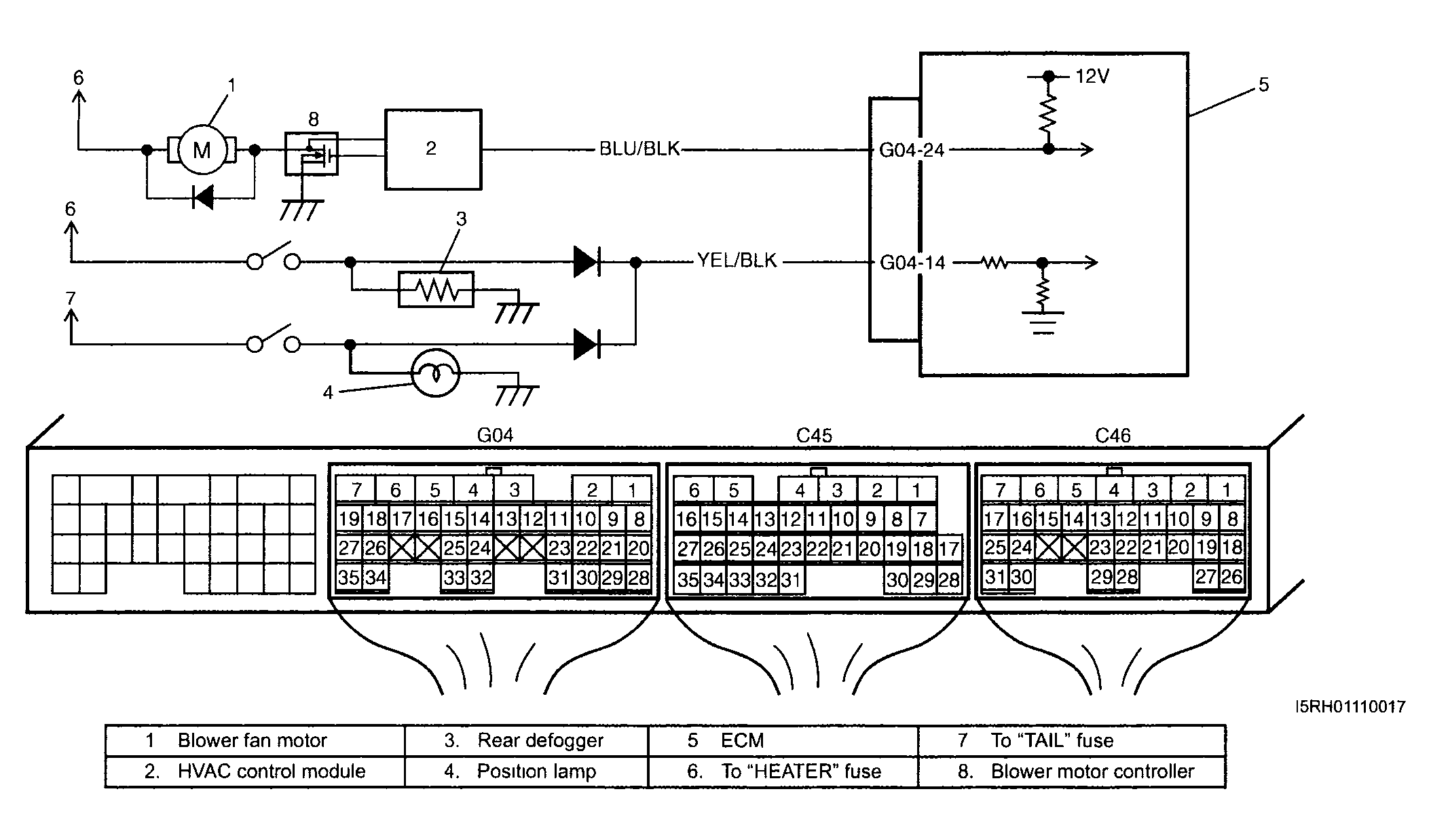

Fig 1: Electric Load Signal Circuit - Wiring Diagram

G04013817

Courtesy of SUZUKI OF AMERICA CORP.
