DTC P0463: Fuel Level Sensor Circuit High Input: Wiring Diagram

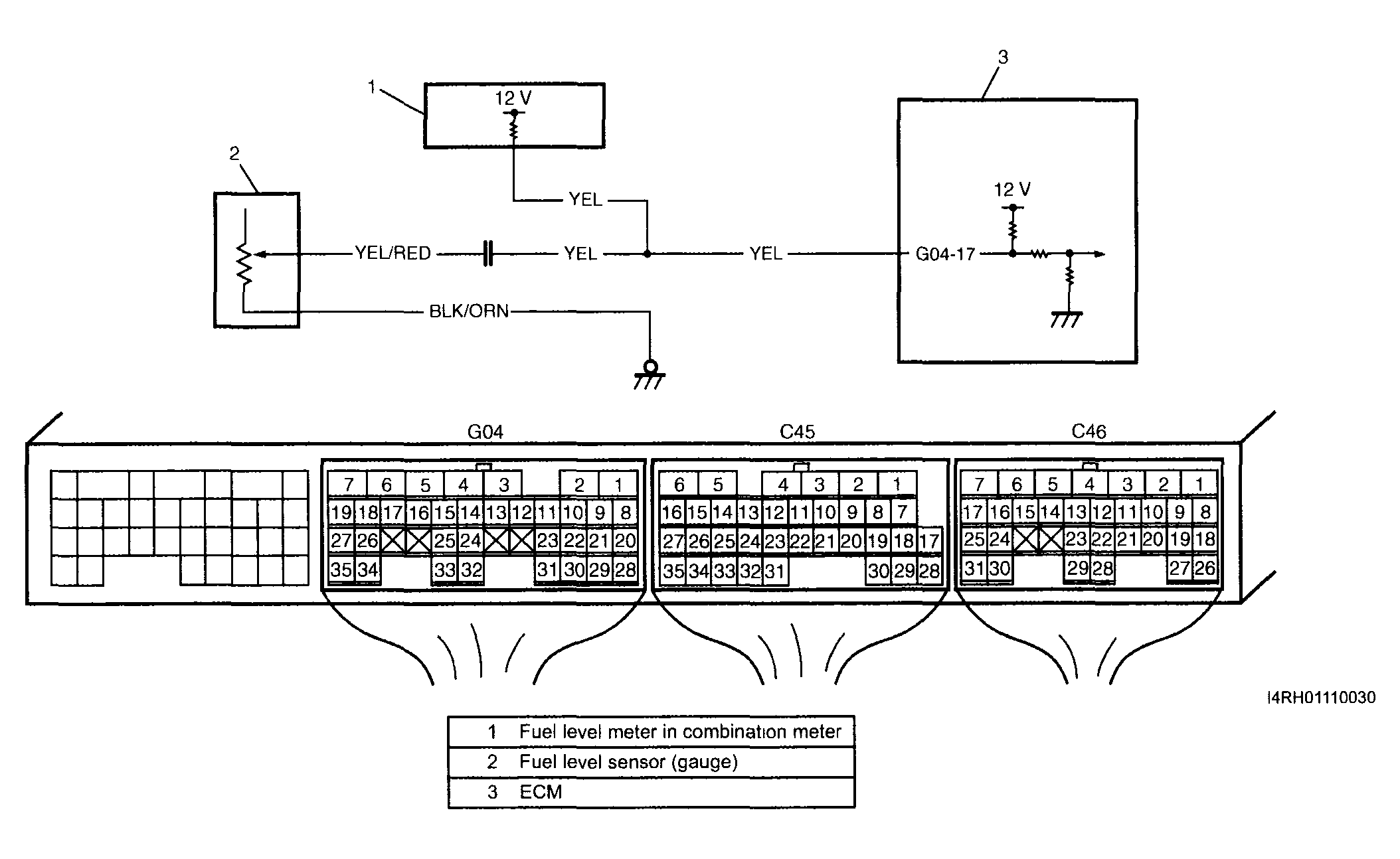

Fig 1: Fuel Level Sensor Circuit High Input - Wiring Diagram (DTC P0463)

G04013740

Courtesy of SUZUKI OF AMERICA CORP.
