DTC P0403: Exhaust Gas Recirculation Control Circuit: Wiring Diagram

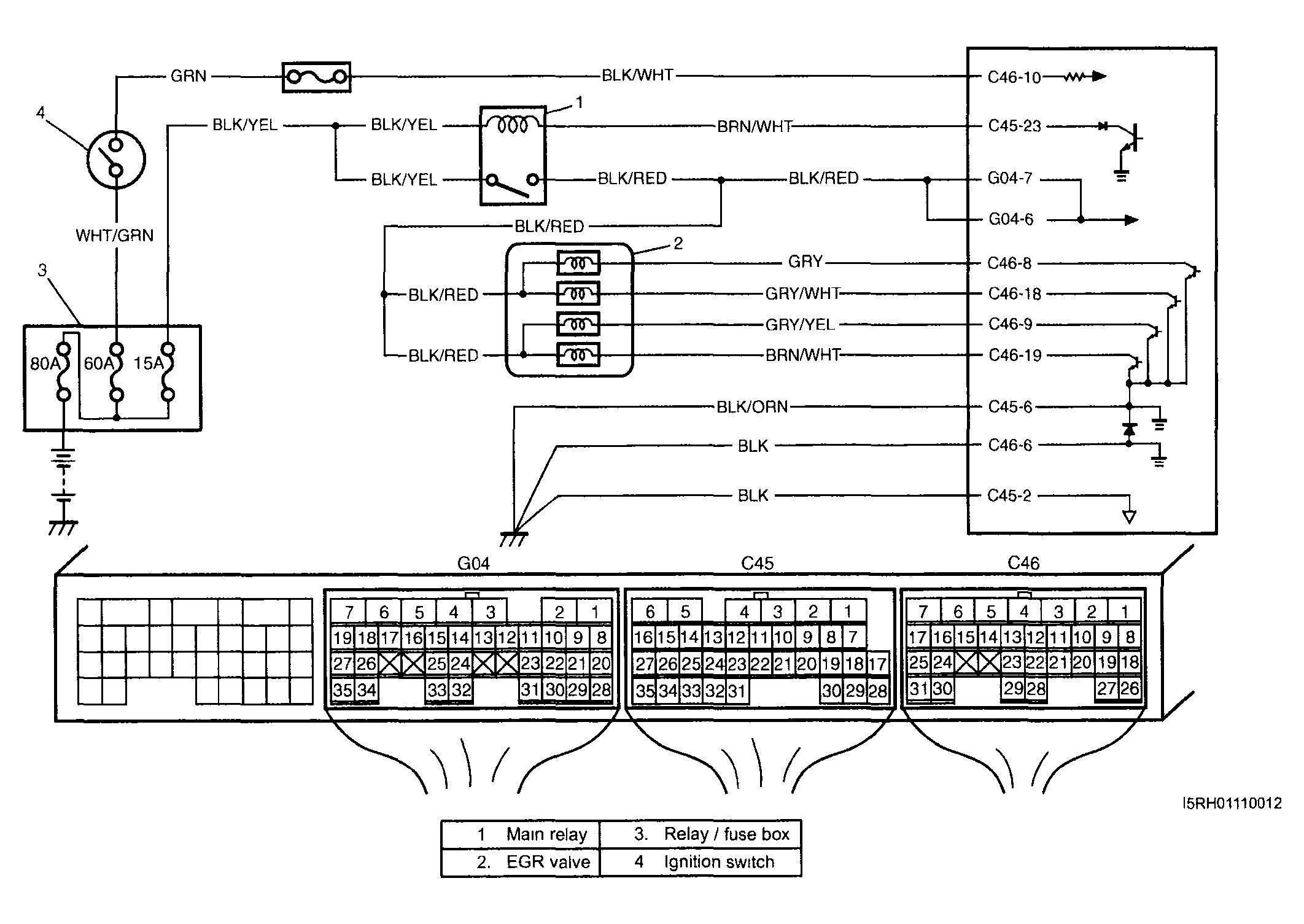

Fig 1: Exhaust Gas Recirculation Control Circuit - Wiring Diagram (DTC P0403)

G04013727

Courtesy of SUZUKI OF AMERICA CORP.
