DTC P0103: Mass Air Flow Sensor Circuit High Input: Wiring Diagram

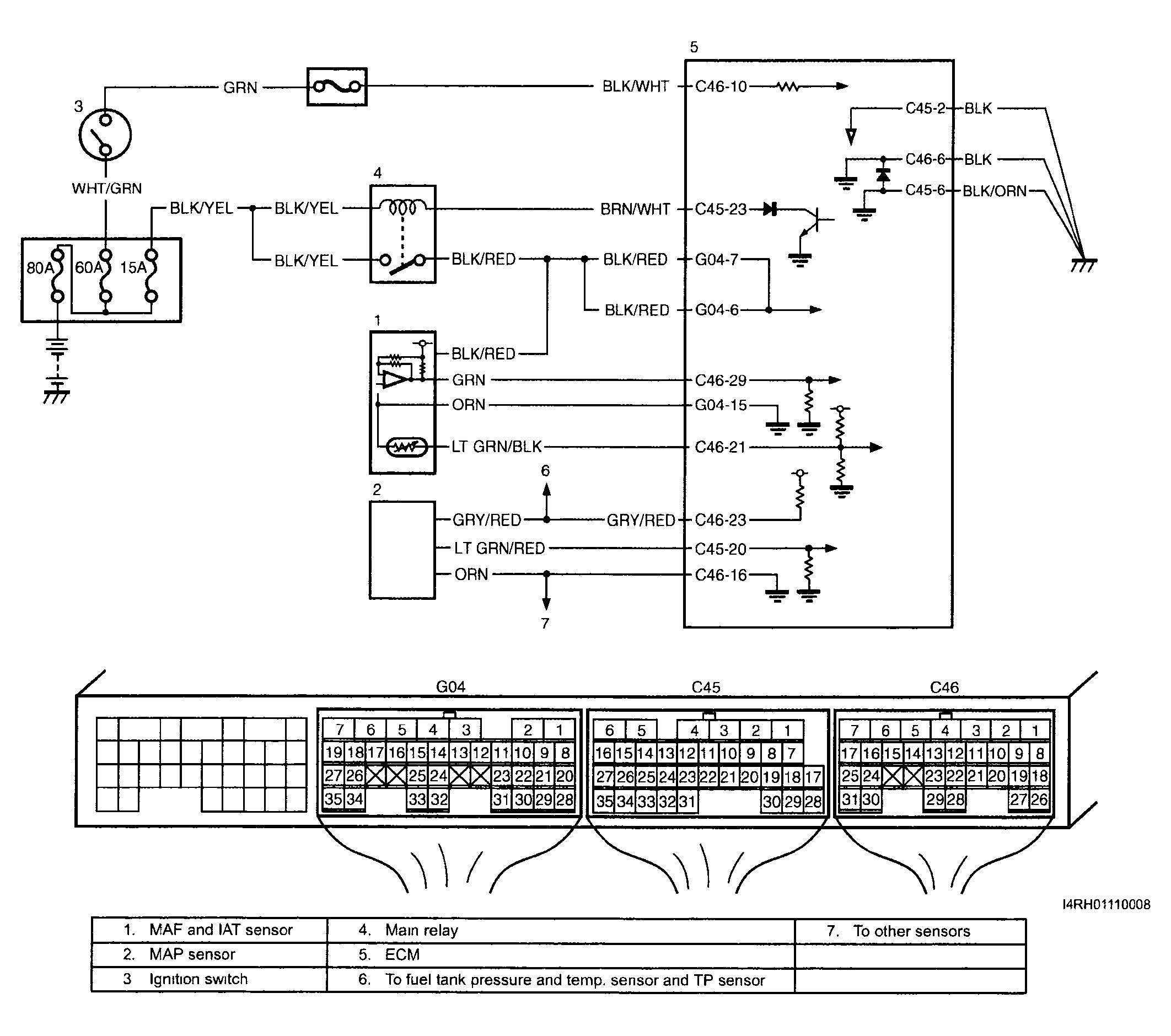

Fig 1: DTC P0103 - Wiring Diagram (Mass Air Flow Sensor Circuit High Input)

G04013685

Courtesy of SUZUKI OF AMERICA CORP.
