Electronic Control System Wiring Circuit Diagram

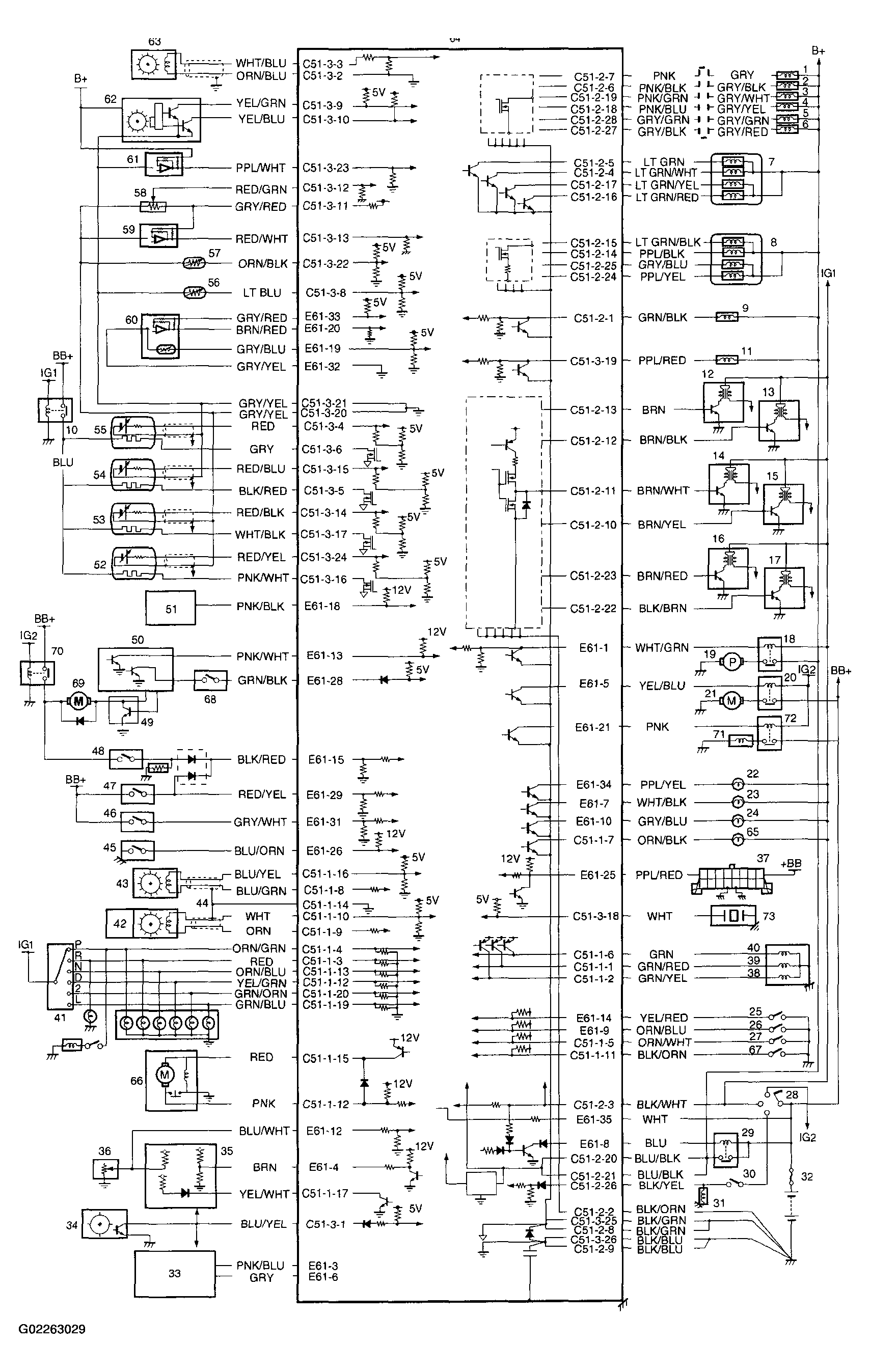

Fig 1: Electronic Control System Wiring Circuit Diagram
G02263029Courtesy of SUZUKI OF AMERICA CORP.

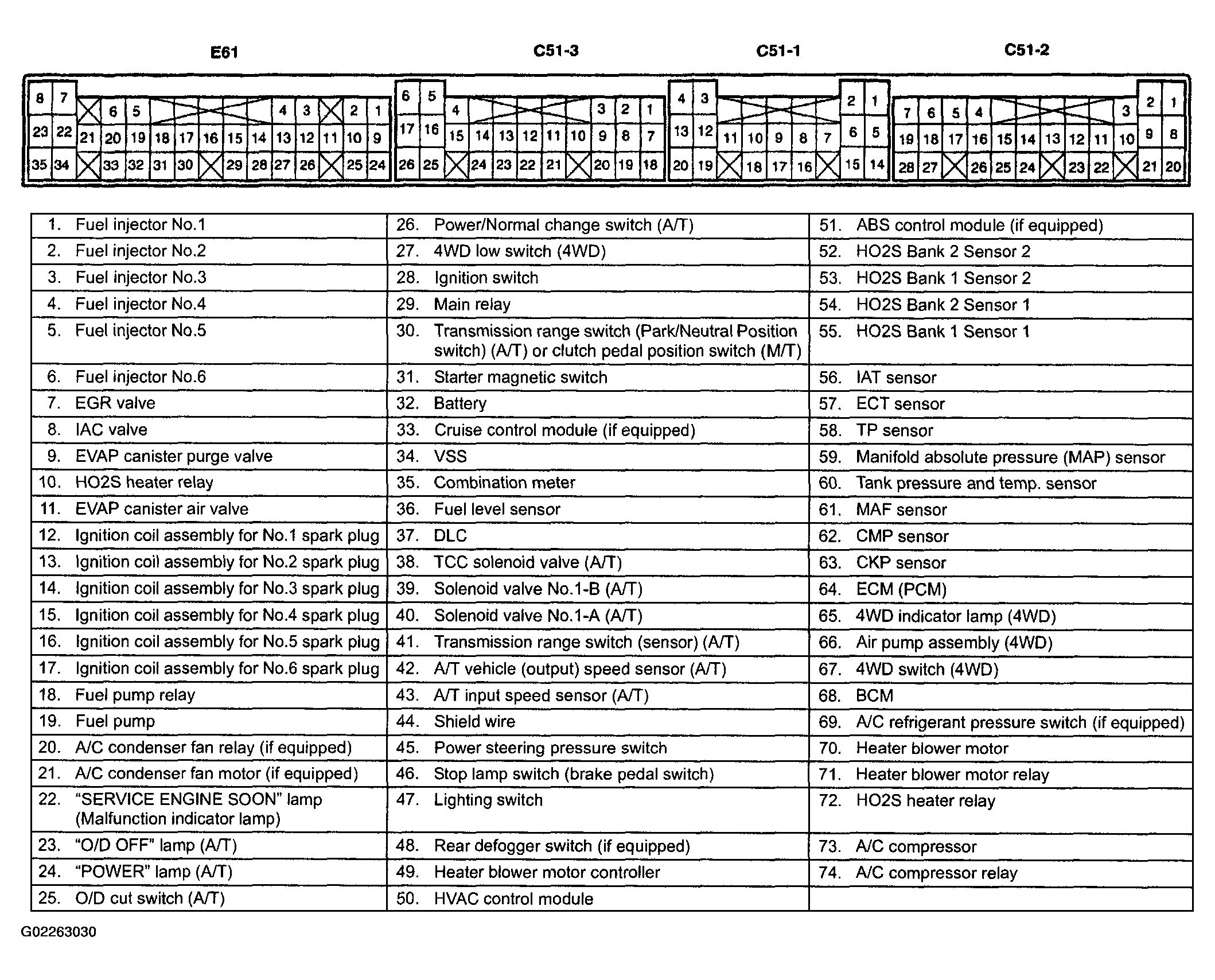

Fig 2: Terminal Arrangement Of ECM (PCM) Connector (Viewed From Harness Side)
G02263030Courtesy of SUZUKI OF AMERICA CORP.
