4WD Control System Components and Functions

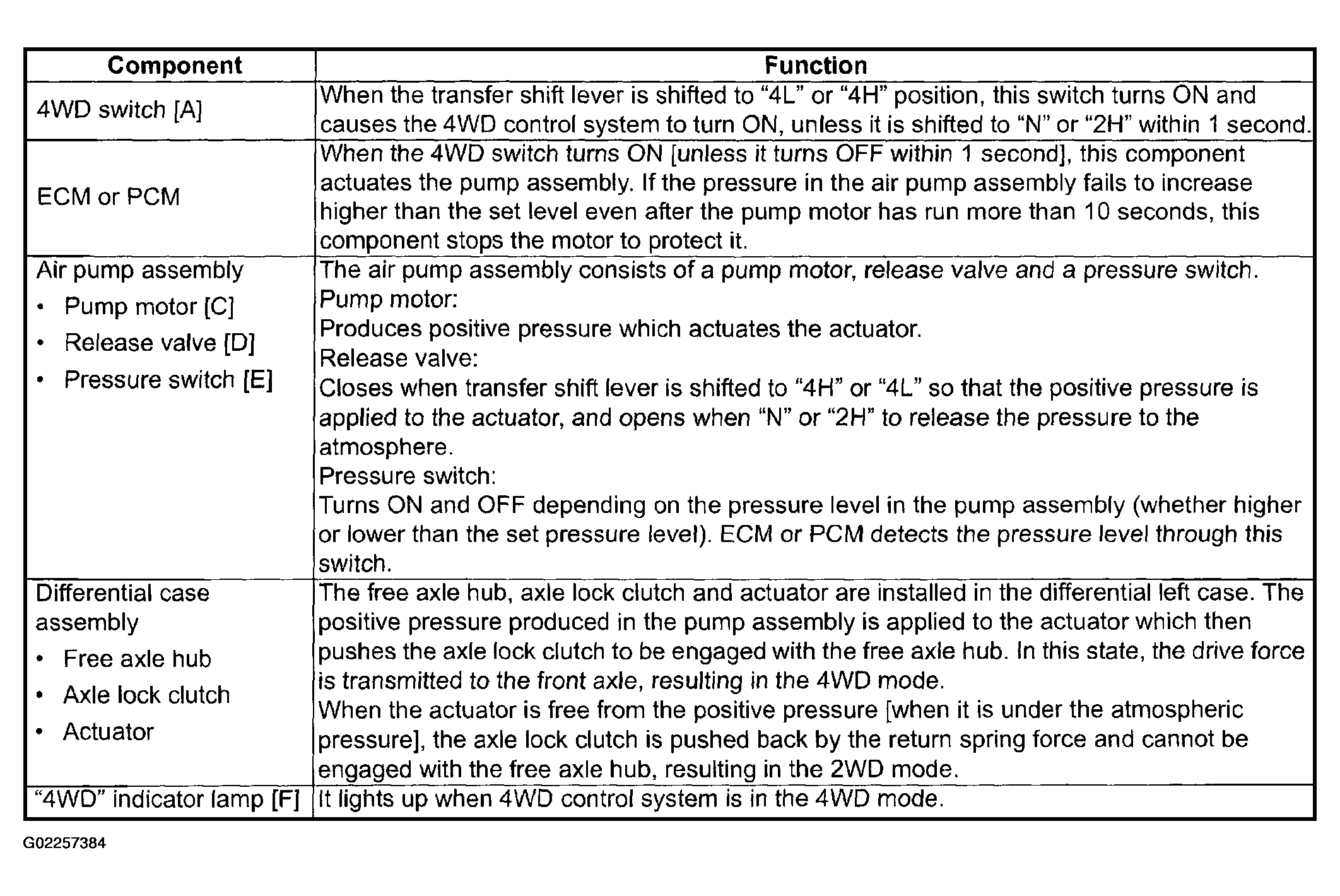

Fig 1: 4WD Control System Components & Functions Chart
G02257384Courtesy of SUZUKI OF AMERICA CORP.

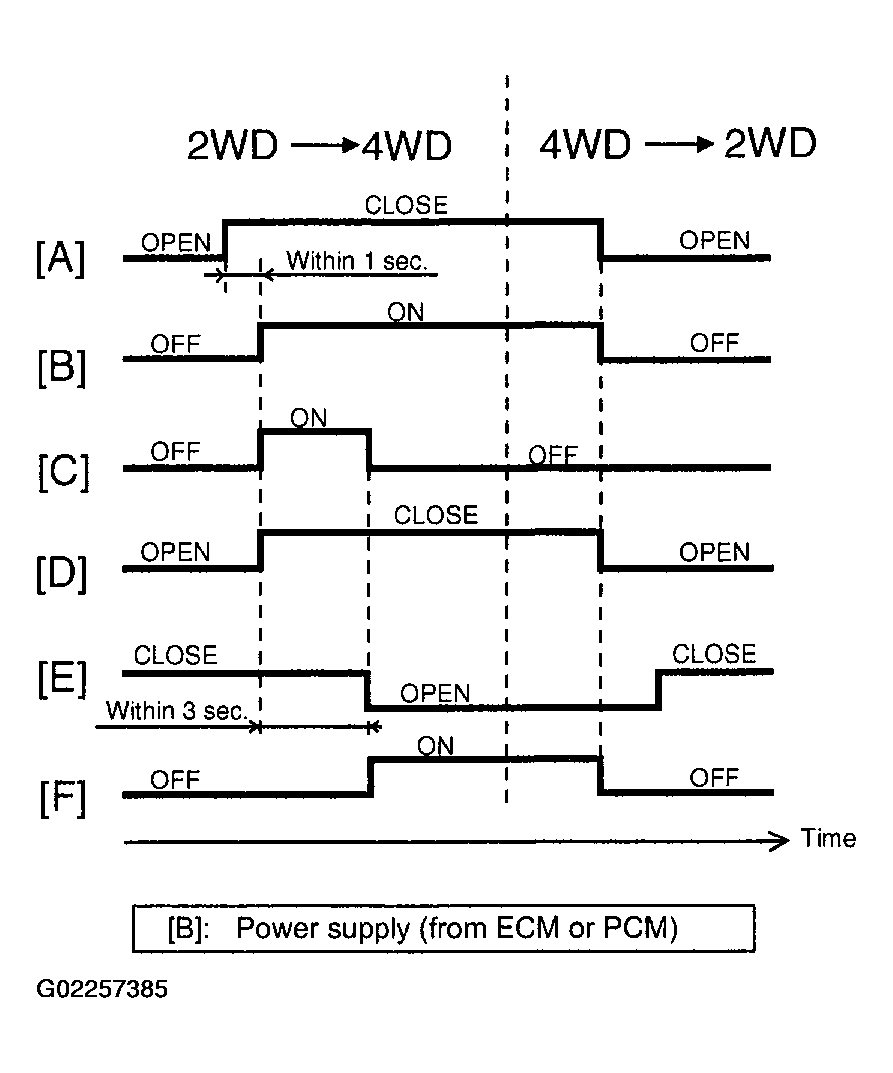

Fig 2: 4WD Control System Components & Functions Pattern
G02257385Courtesy of SUZUKI OF AMERICA CORP.
