Schematic of On Board Refueling Vapor Recovery System

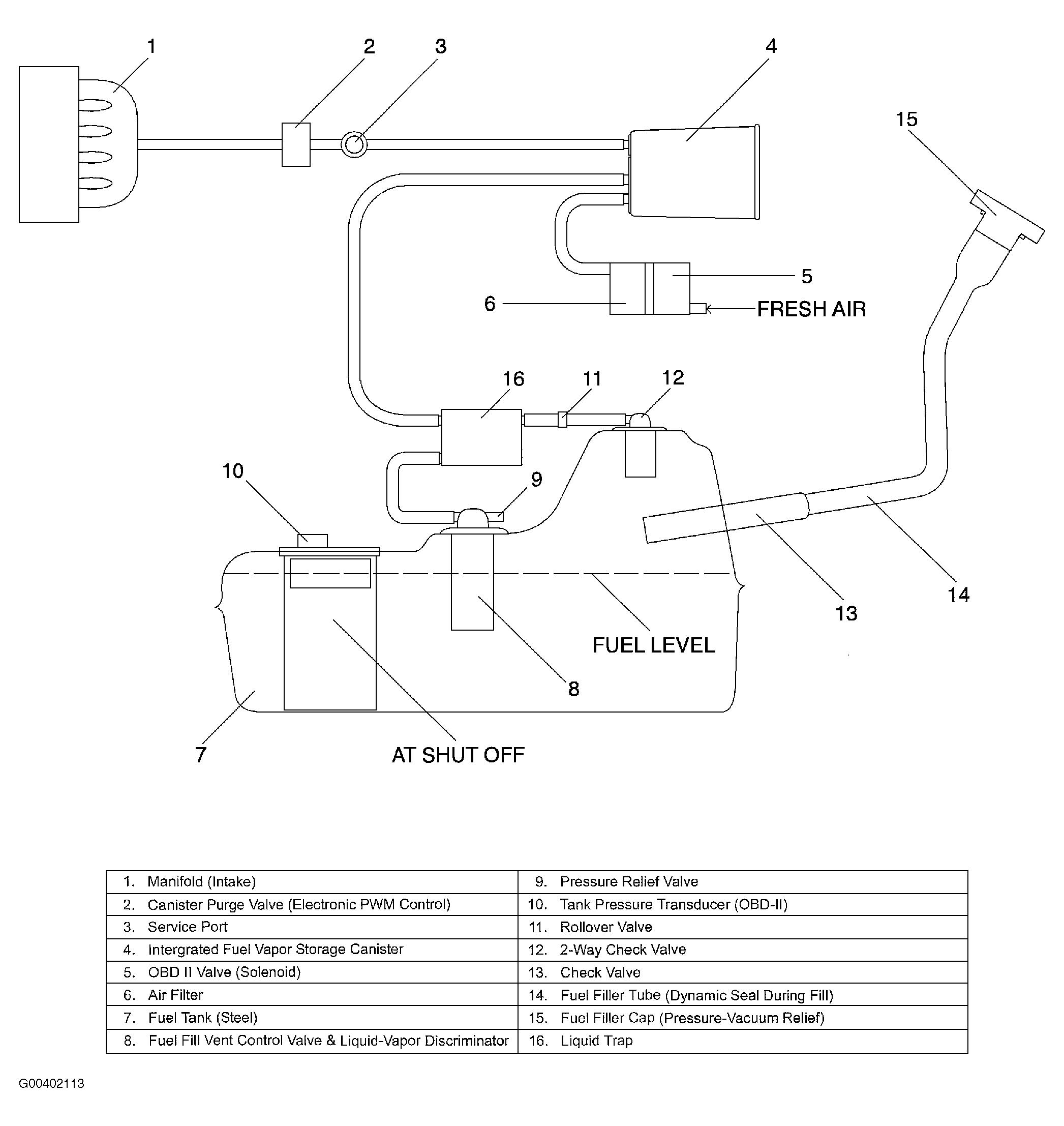

Fig 1: Identifying Schematic Of On Board Refueling Vapor Recovery System

Courtesy of SUZUKI OF AMERICA CORP.

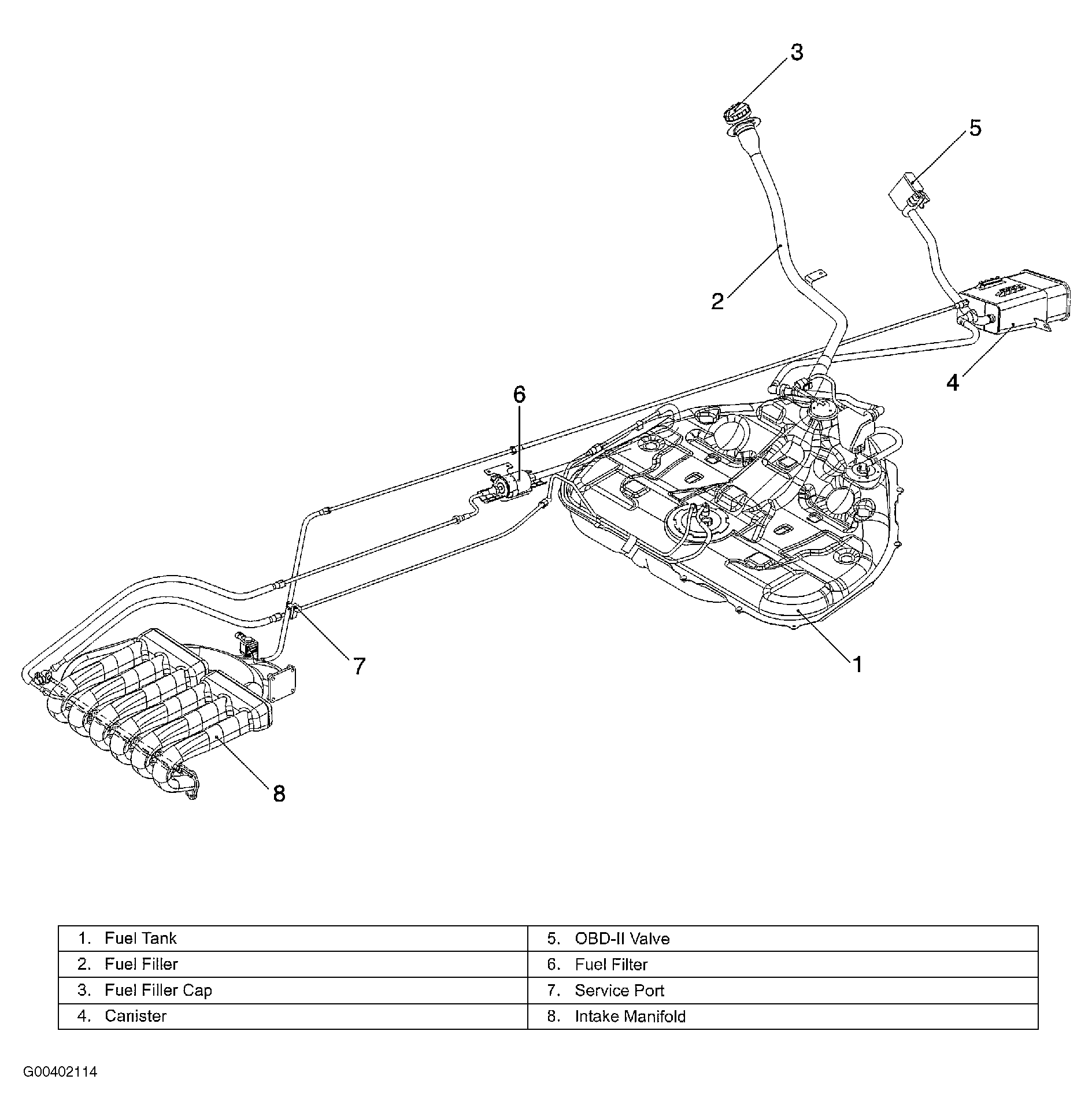

Fig 2: Identifying Component Location

Courtesy of SUZUKI OF AMERICA CORP.
