Connector End View Diagram

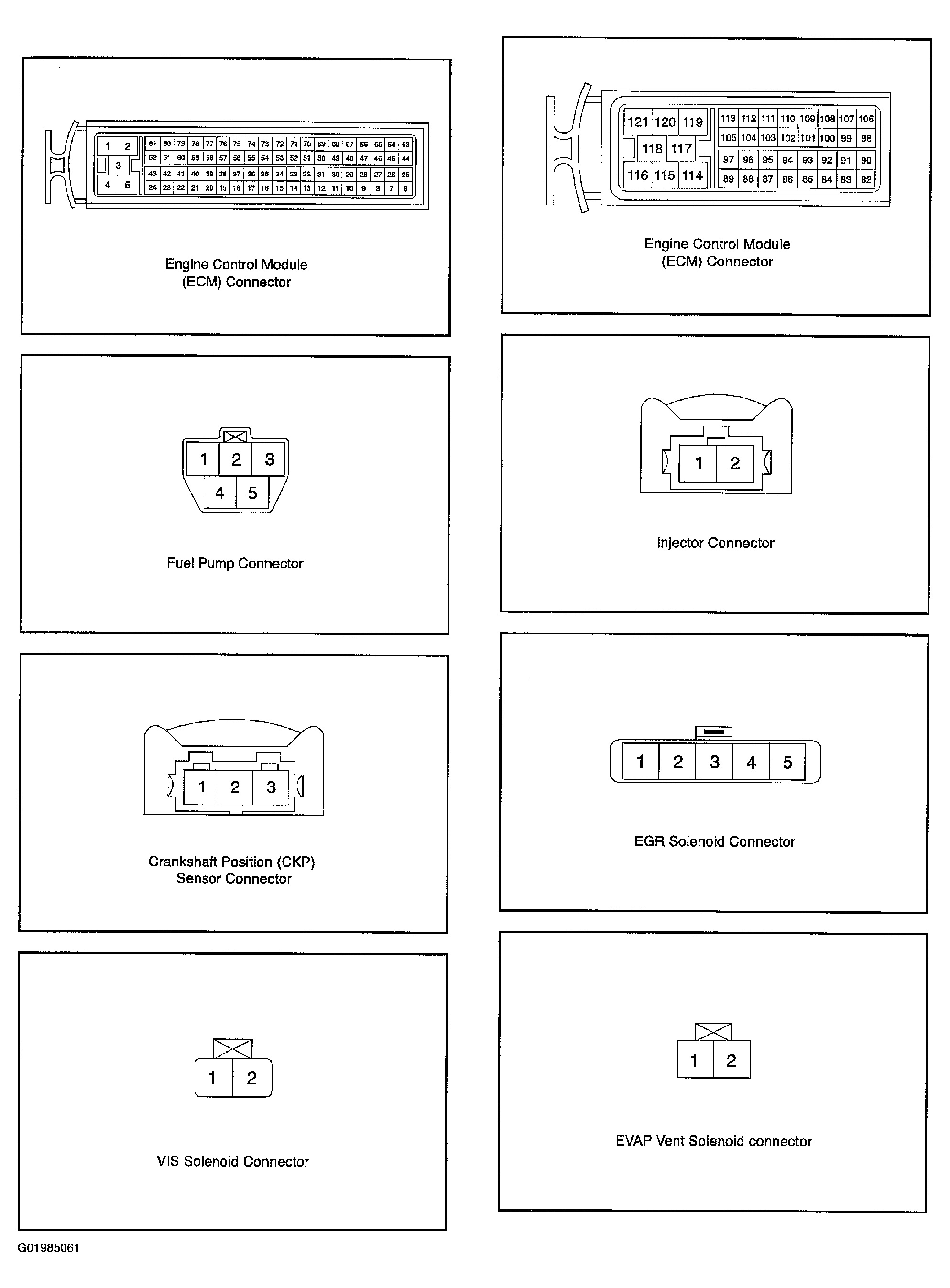

Fig 1: Connector End View Diagram (1 Of 2)

G01985061

Courtesy of SUZUKI OF AMERICA CORP.

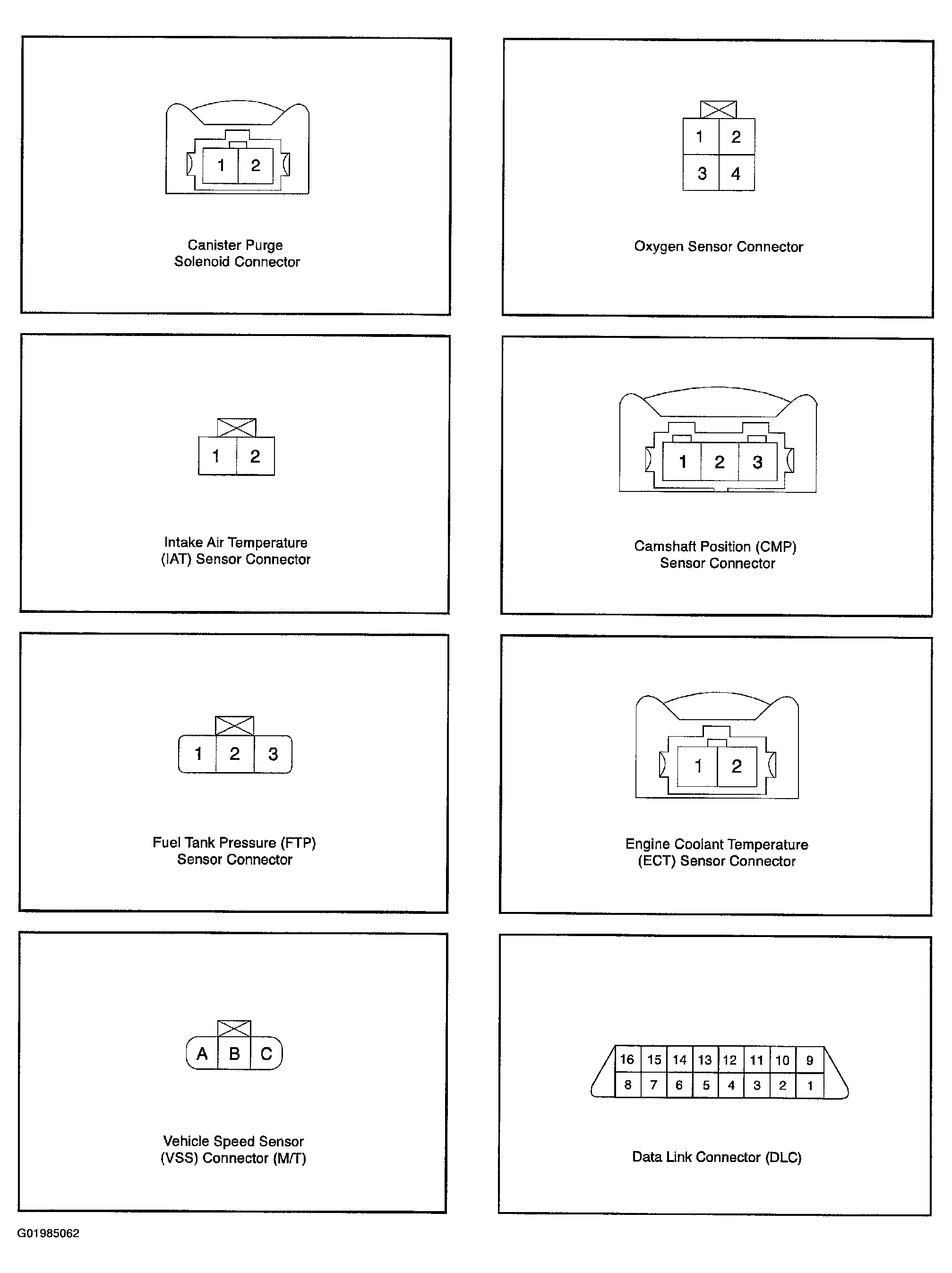

Fig 2: Connector End View Diagram (2 Of 2)

G01985062

Courtesy of SUZUKI OF AMERICA CORP.
