DTC P0501: Vehicle Speed Sensor Unplausible Signal: Notes

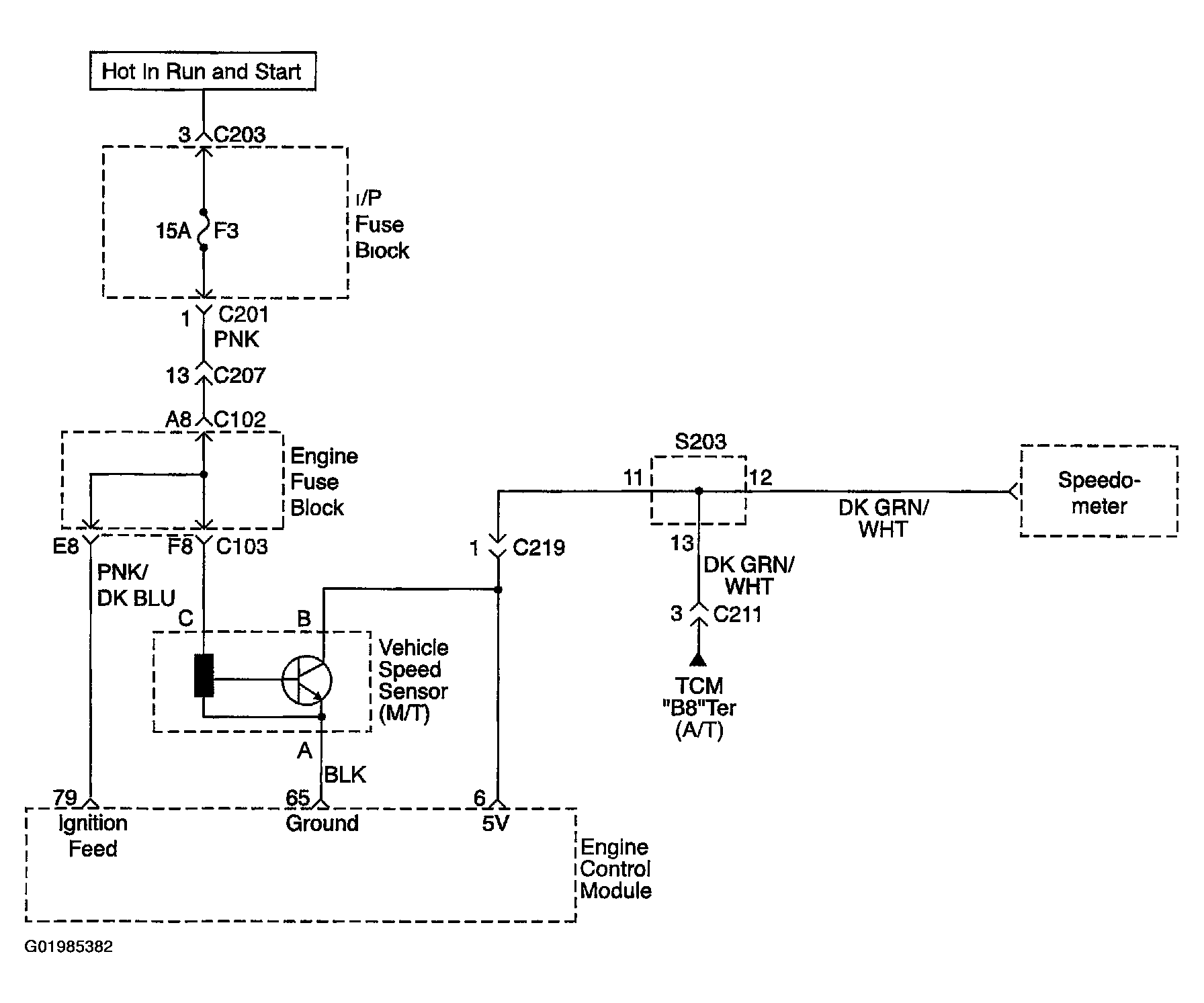

Fig 1: DTC P0501: Vehicle Speed Sensor Unplausible Signal - System Wiring Diagram

G01985382

Courtesy of SUZUKI OF AMERICA CORP.
