DTC P0445: EVAP Purge Control Valve Circuit Shorted: Notes

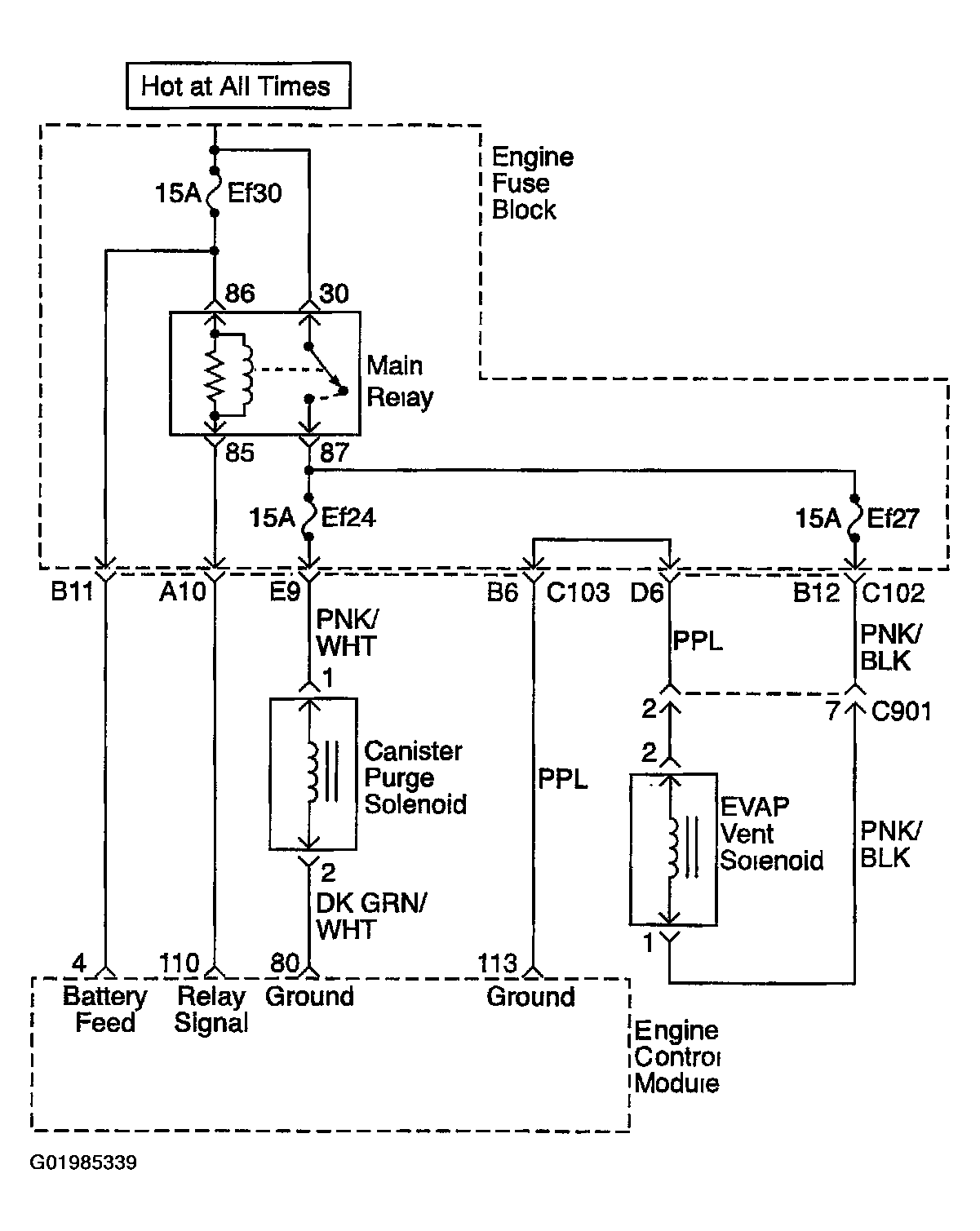

Fig 1: DTC P0445: EVAP Purge Control Valve Circuit Shorted - System Wiring Diagram

G01985339

Courtesy of SUZUKI OF AMERICA CORP.
