DTC P0444: EVAP Purge Control Valve Circuit Open: Notes

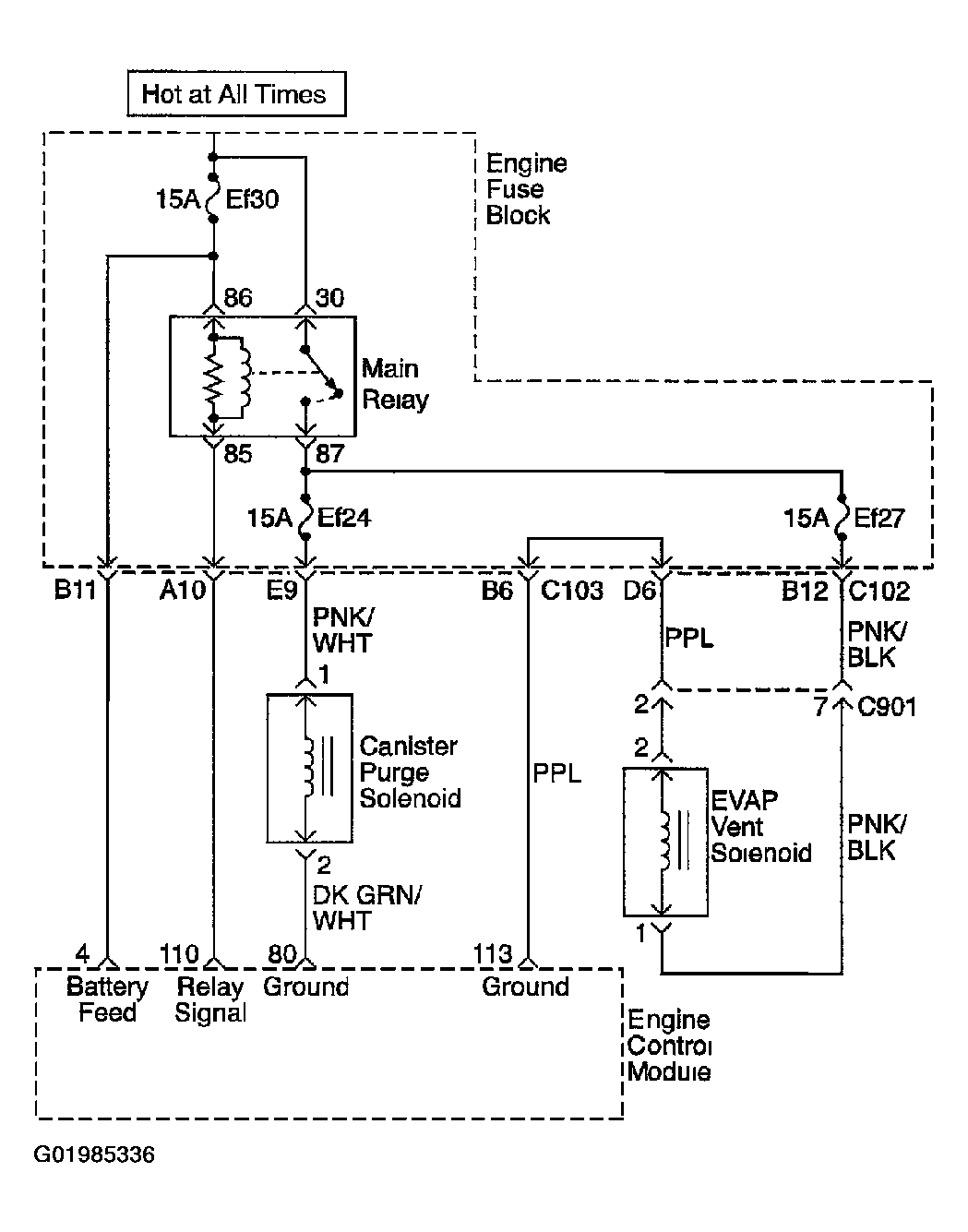

Fig 1: DTC P0444: EVAP Purge Control Valve Circuit Open - System Wiring Diagram

G01985336

Courtesy of SUZUKI OF AMERICA CORP.
