Home >> Suzuki >> 2004 >> Verona S >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostic Information and Procedures >> TCS Warning Lamp On >> Notes

TCS Warning Lamp On: Notes

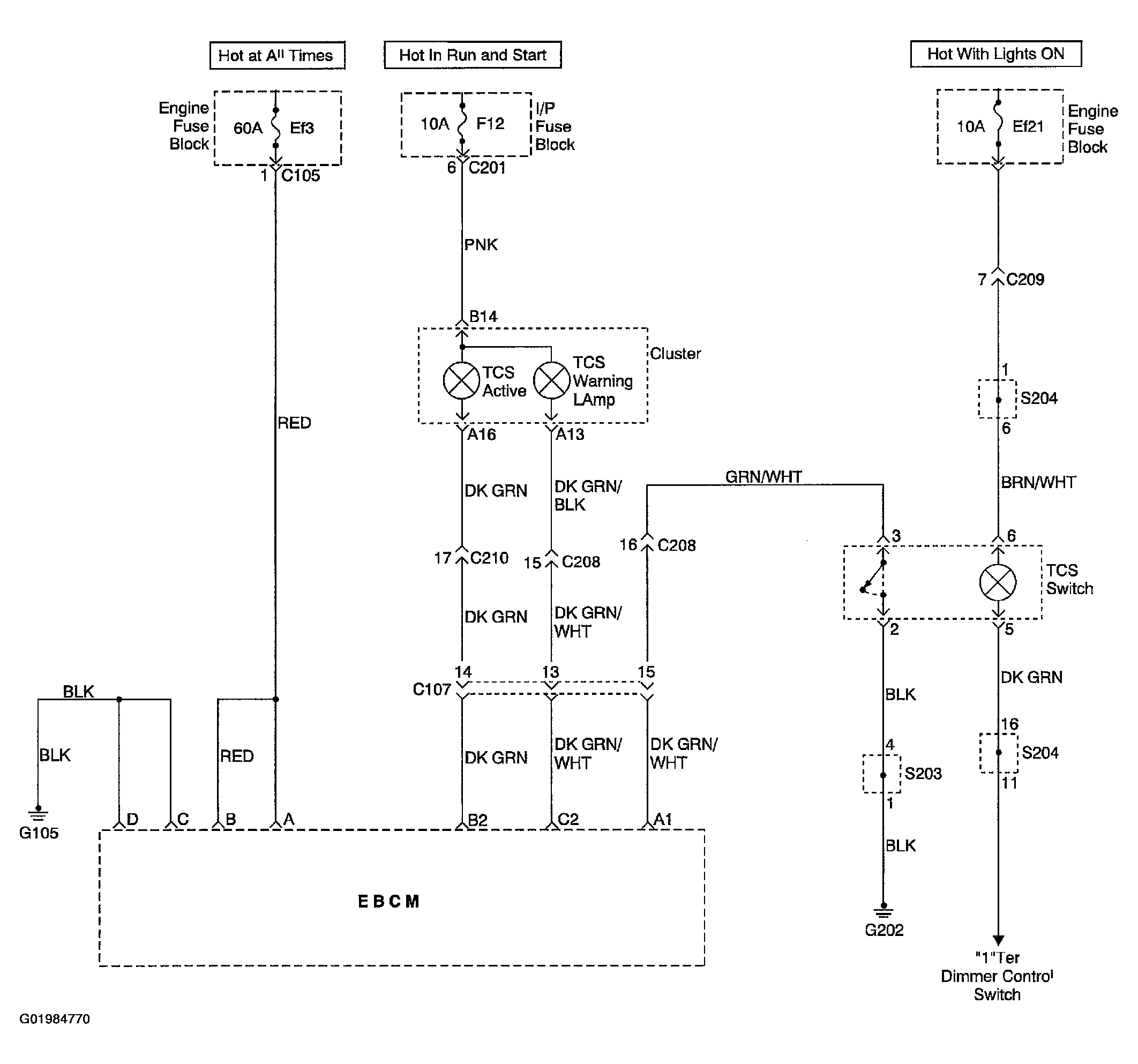

Fig 1: TCS Warning Lamp On - Wiring Diagram

G01984770

Courtesy of SUZUKI OF AMERICA CORP.
