TCS Indicator Lamp ON: Notes

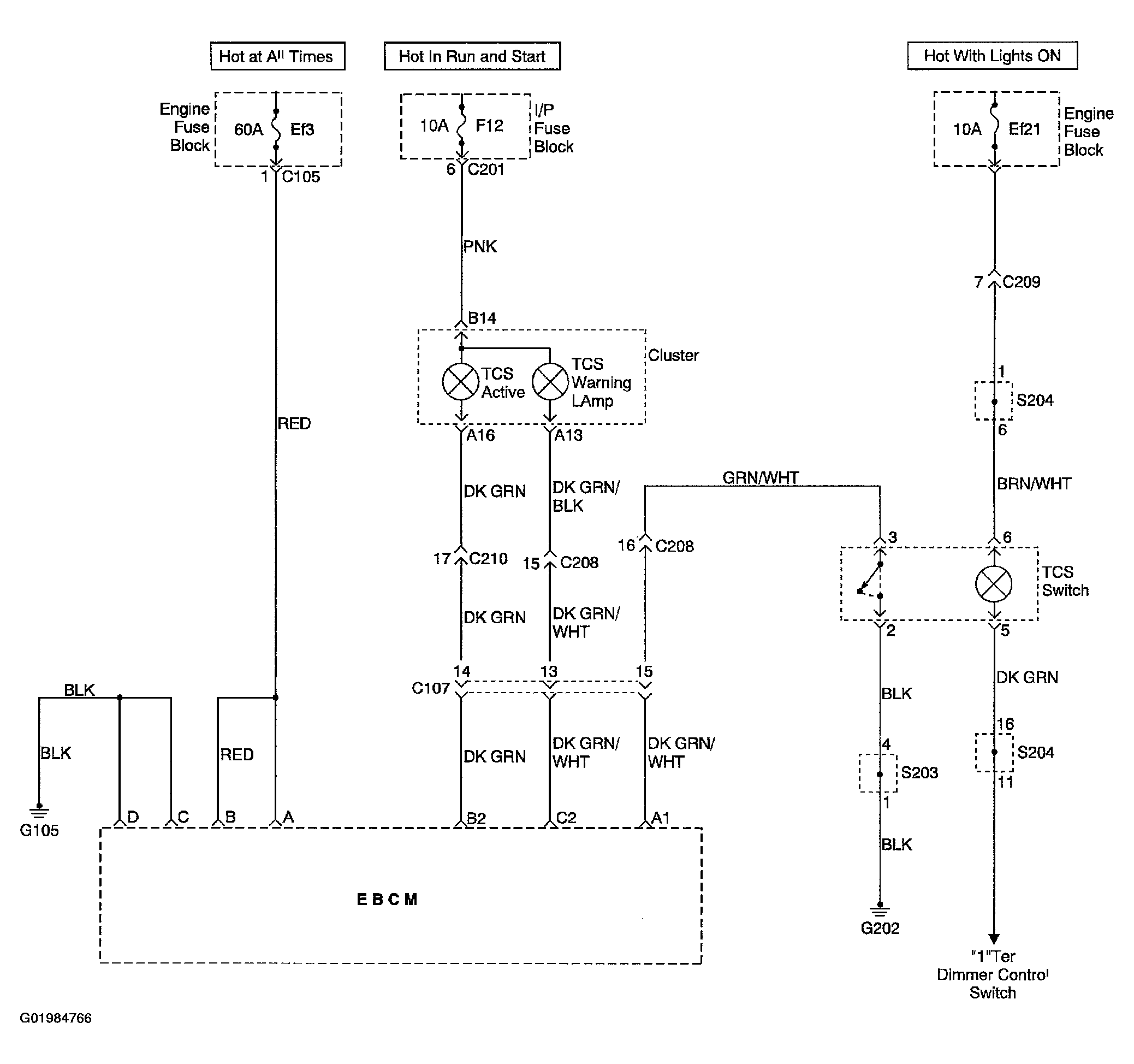

Fig 1: TCS Indicator Lamp ON - Wiring Diagram

G01984766

Courtesy of SUZUKI OF AMERICA CORP.
