DTC C0033: Right Front Wheel Speed Sensor Circuit Open or Shorted
>>
Notes
DTC C0033: Right Front Wheel Speed Sensor Circuit Open or Shorted: Notes

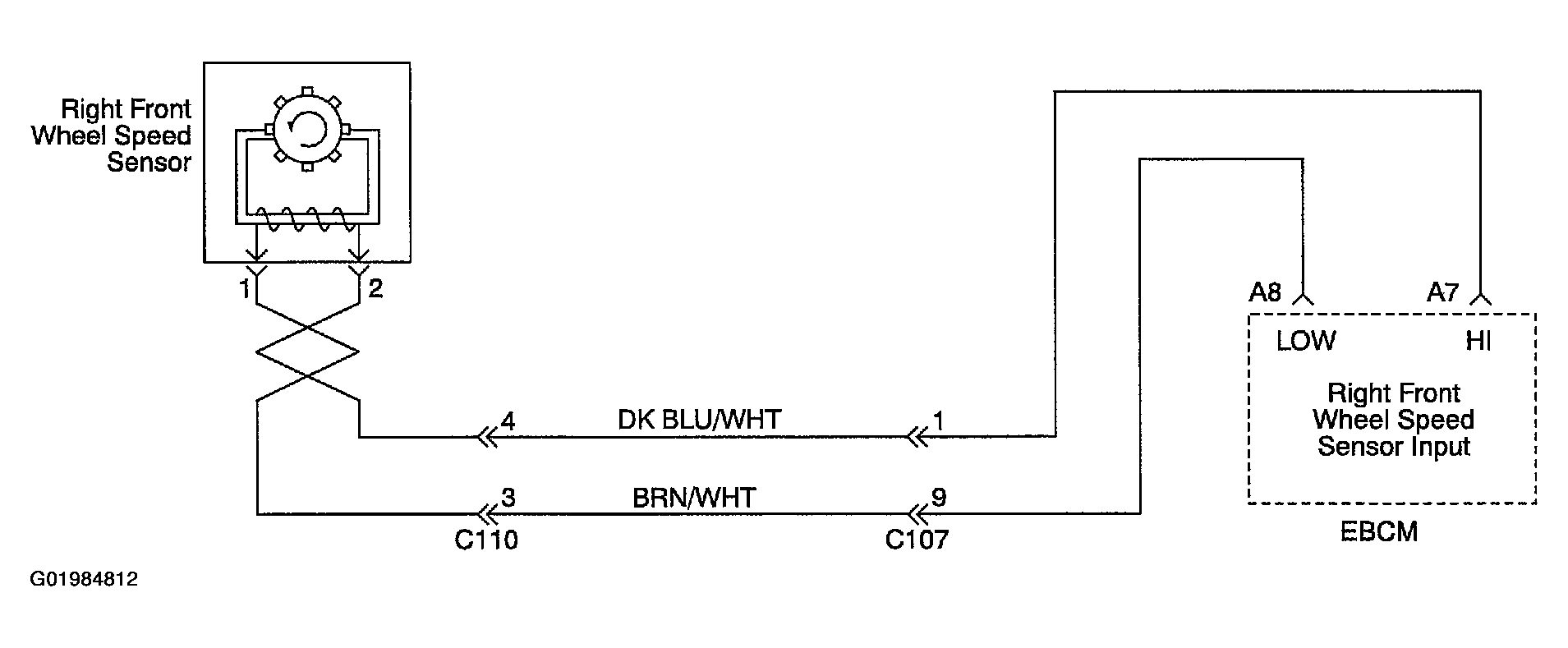

Fig 1: DTC C0033: Right Front Wheel Speed Sensor Circuit Open Or Shorted - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
