Floor Console: Installation

  1. Connect the electrical connectors.
  2. Install the floor console.

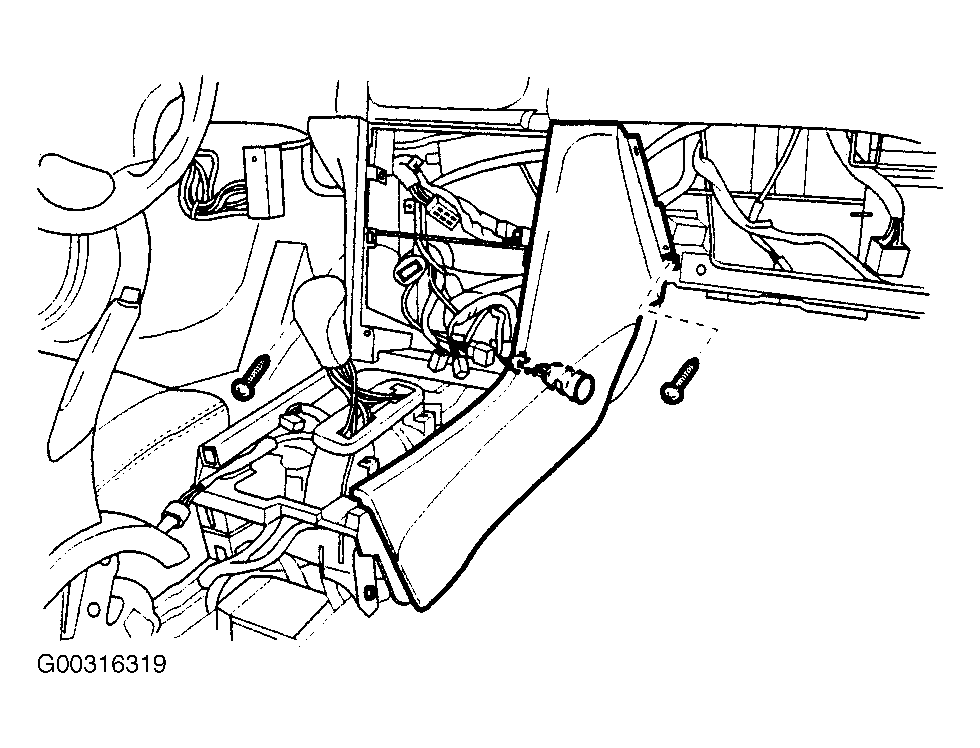

  3. Install the front portion of the floor console with the screws. See Figure

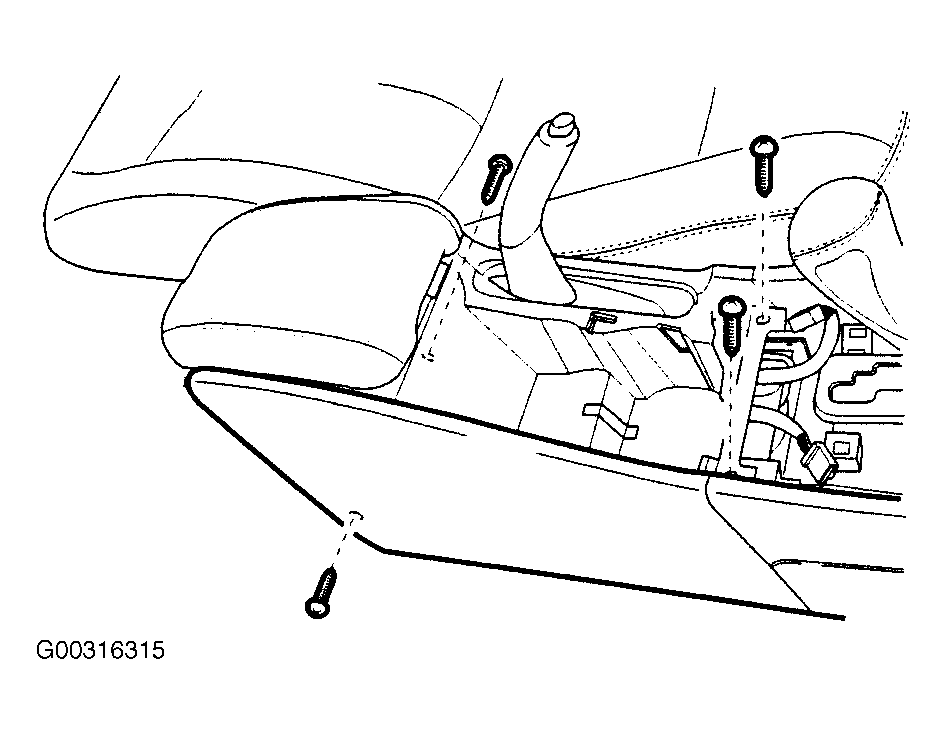

  4. Install the screws to the rear portion of the floor console. See Figure .
  5. Connect the negative battery cable.
  6. Install the glove box, instrument panel lower cover, cigar lighter trim panel and stereo cassette player.

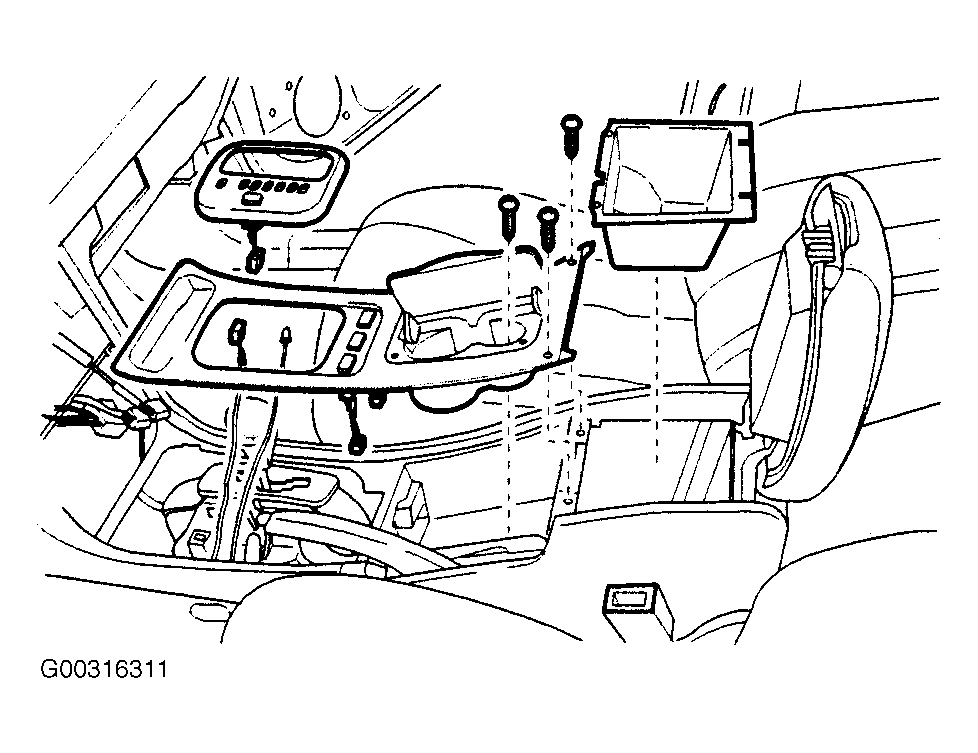

  7. Install the console cover. See Figure .
