Home >> Suzuki >> 2004 >> Verona EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information & Diagnosis >> Diagnostic Information and Procedures >> DTC P1673: CAN Communication Error (ECM Cannot Emit Message) >> Notes

DTC P1673: CAN Communication Error (ECM Cannot Emit Message): Notes

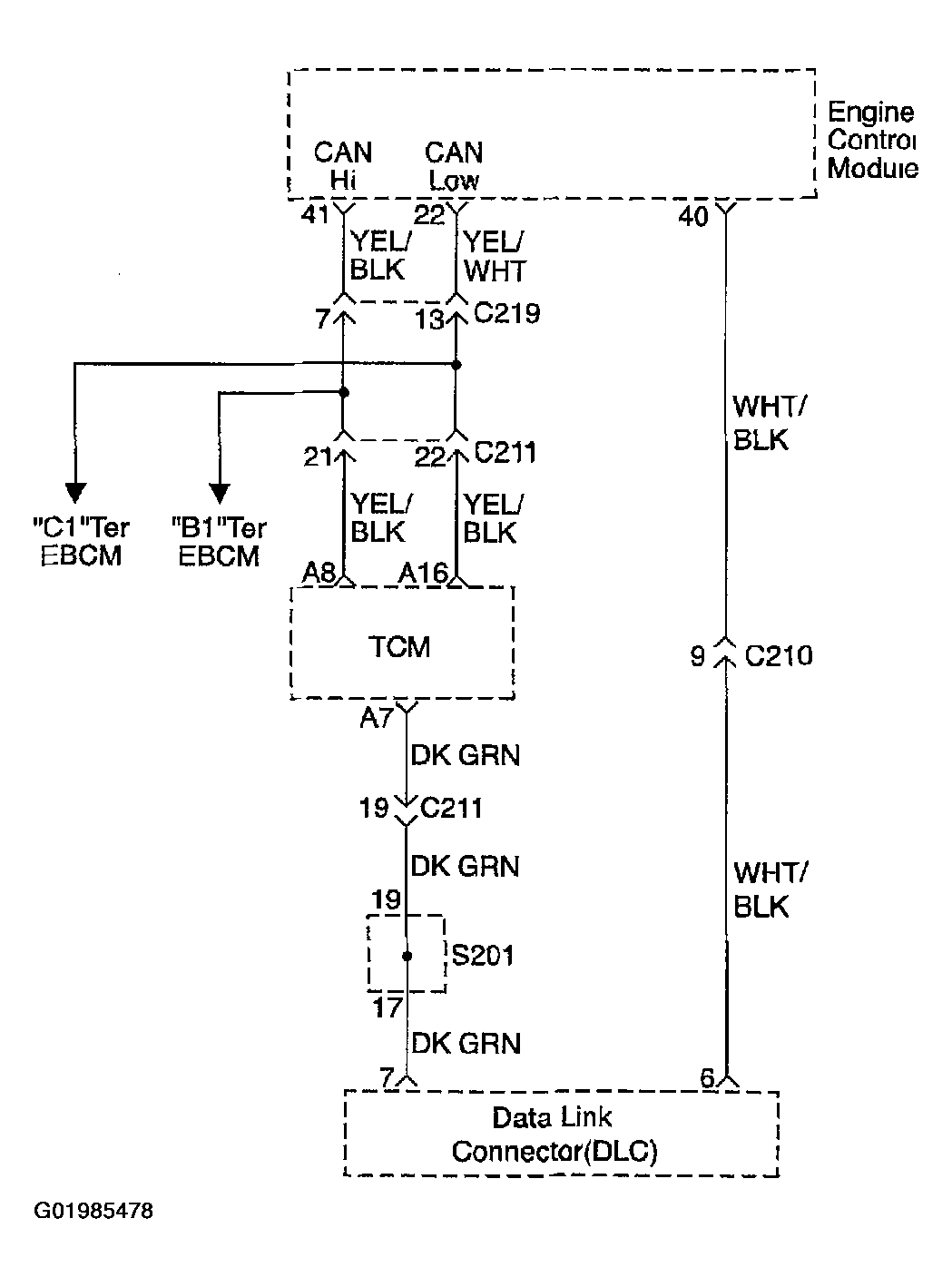

Fig 1: DTC P1673 CAN Communication Error (ECM Cannot Emit Message) - System Wiring Diagram

G01985478

Courtesy of SUZUKI OF AMERICA CORP.
