DTC P0532: A/C Pressure Sensor Circuit Low Input: Notes

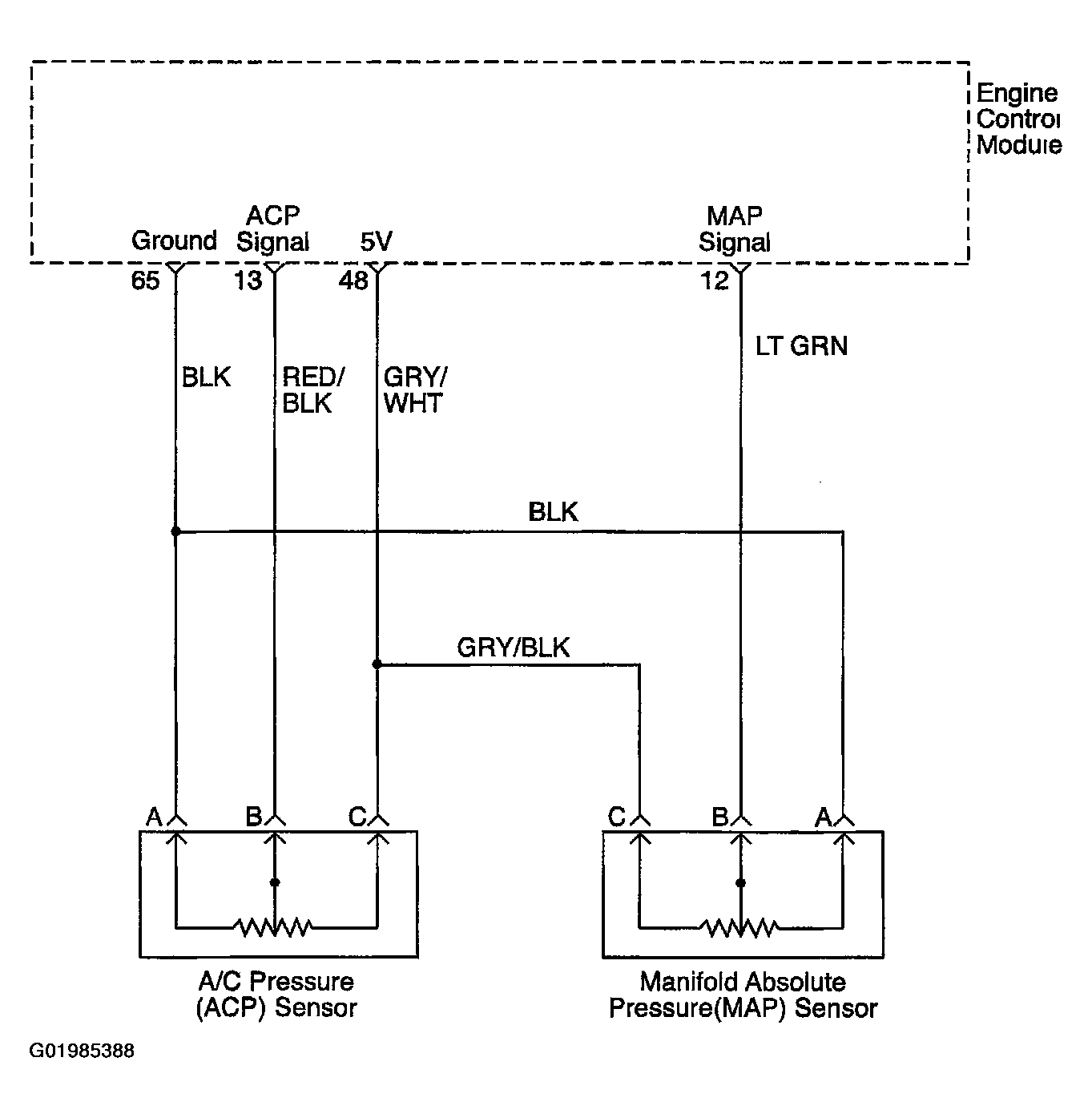

Fig 1: DTC P0532: A/C Pressure Sensor Circuit Low Input - System Wiring Diagram

G01985388

Courtesy of SUZUKI OF AMERICA CORP.
