DTC P0448: EVAP Vent Control Circuit Shorted: Notes

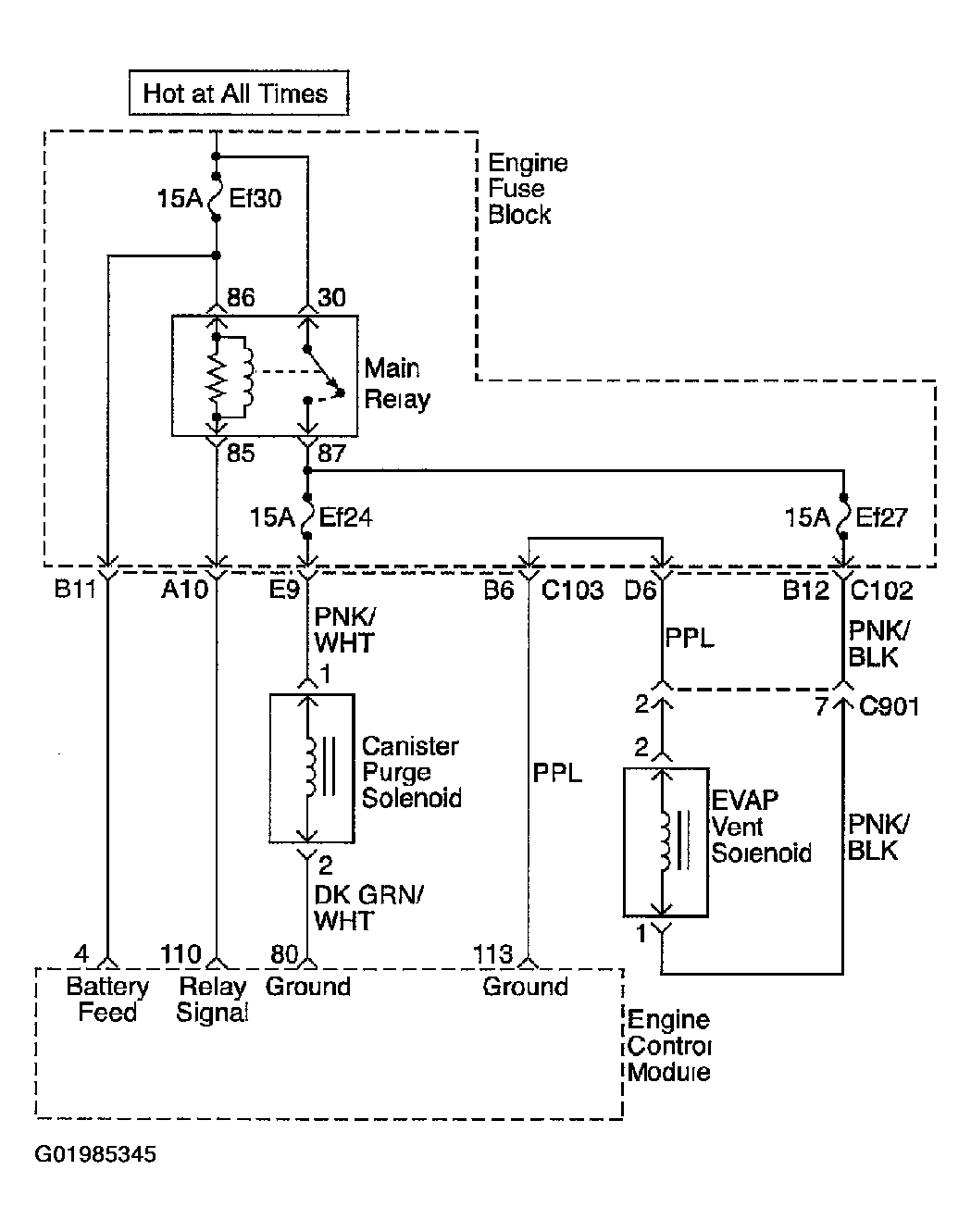

Fig 1: DTC P0448: EVAP Vent Control Circuit Shorted - System Wiring Diagram

G01985345

Courtesy of SUZUKI OF AMERICA CORP.
