DTC P0447: EVAP Vent Control Circuit Open: Notes

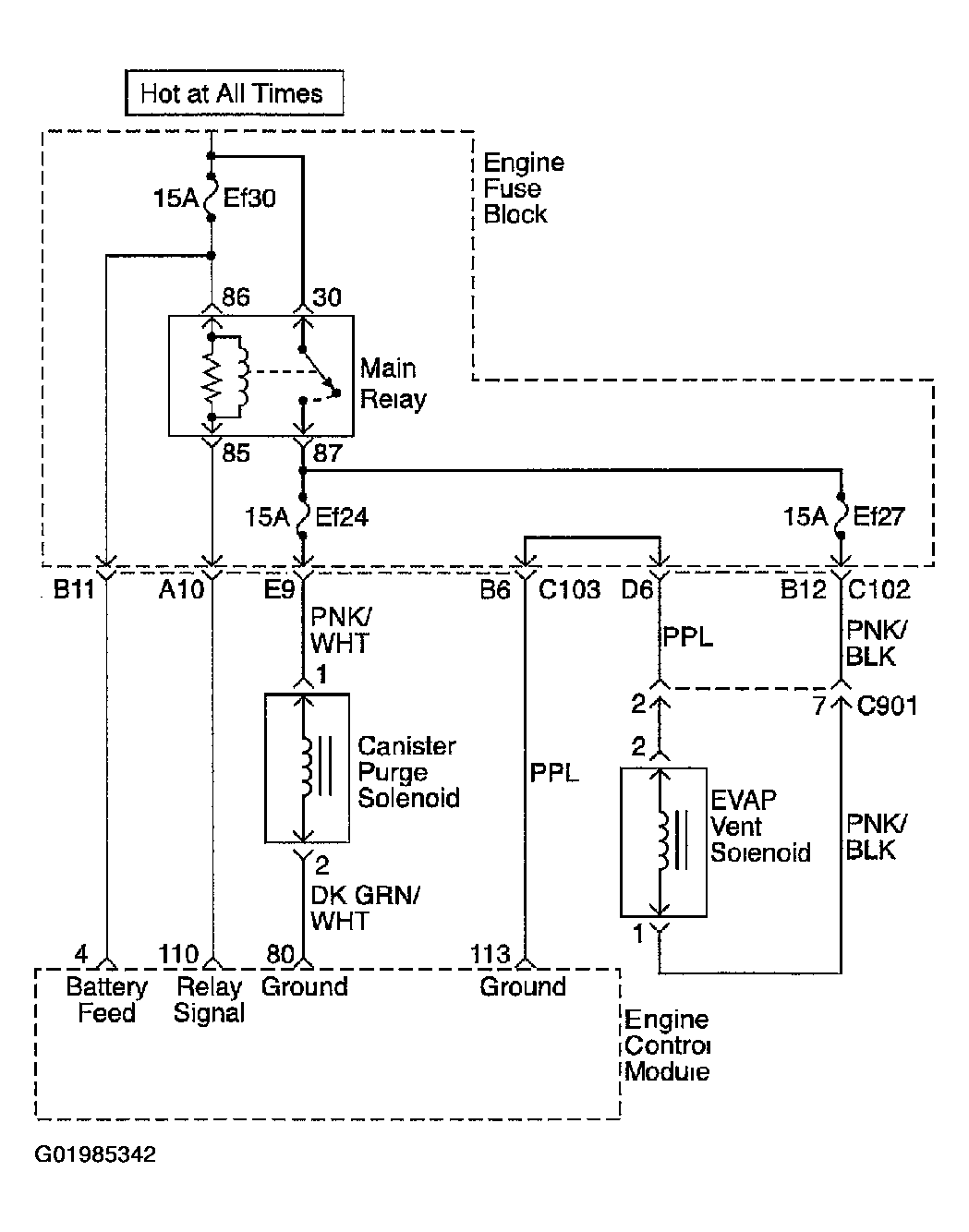

Fig 1: DTC P0447: EVAP Vent Control Circuit Open - System Wiring Diagram

G01985342

Courtesy of SUZUKI OF AMERICA CORP.
